Hummer
>>
2008
>>
H3 L5-3.7L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution Schematics
>>
G 106
G 106

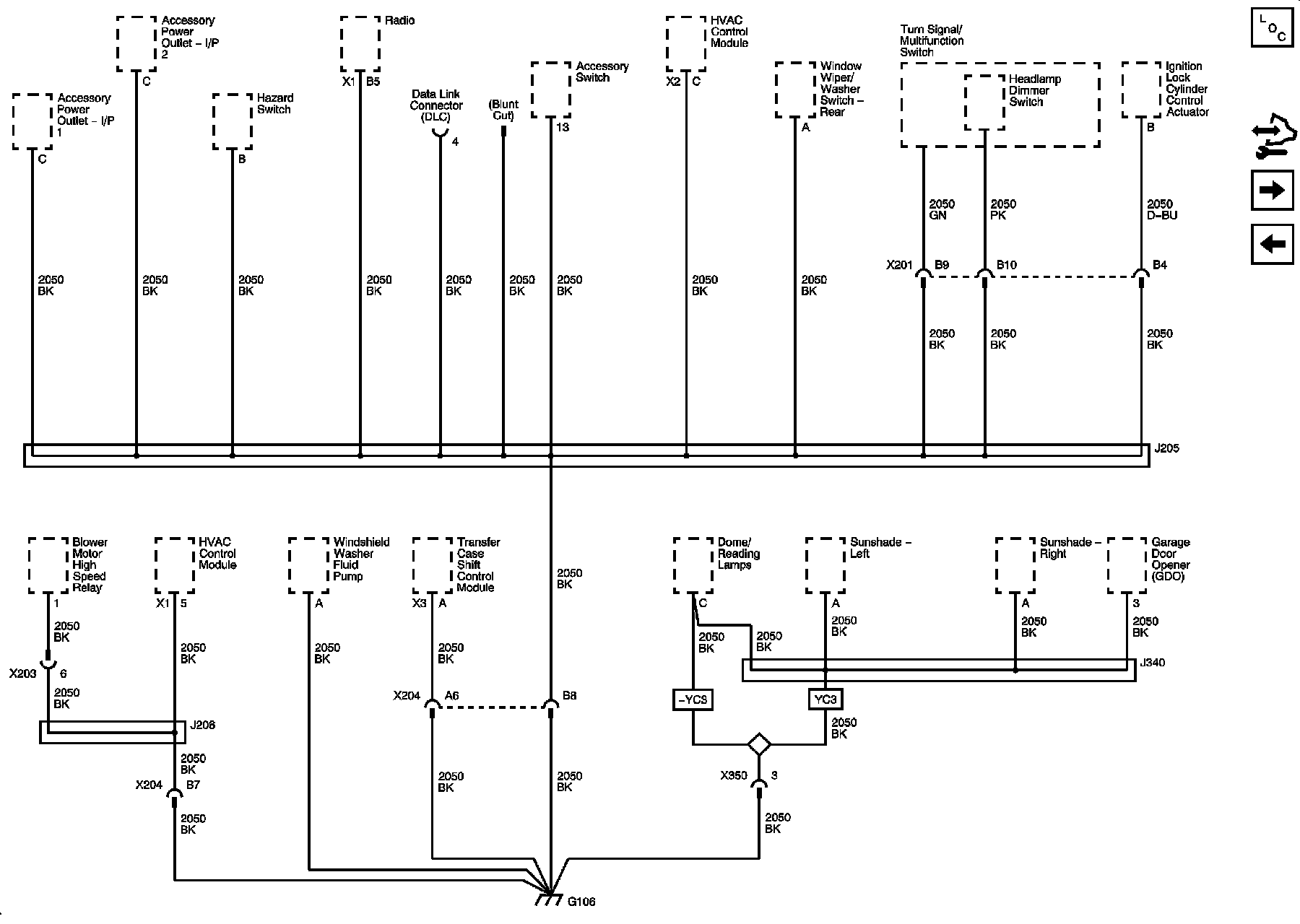

Ground Distribution Schematics
G106 - LHD
