Electrical Diagrams



HVAC Schematics

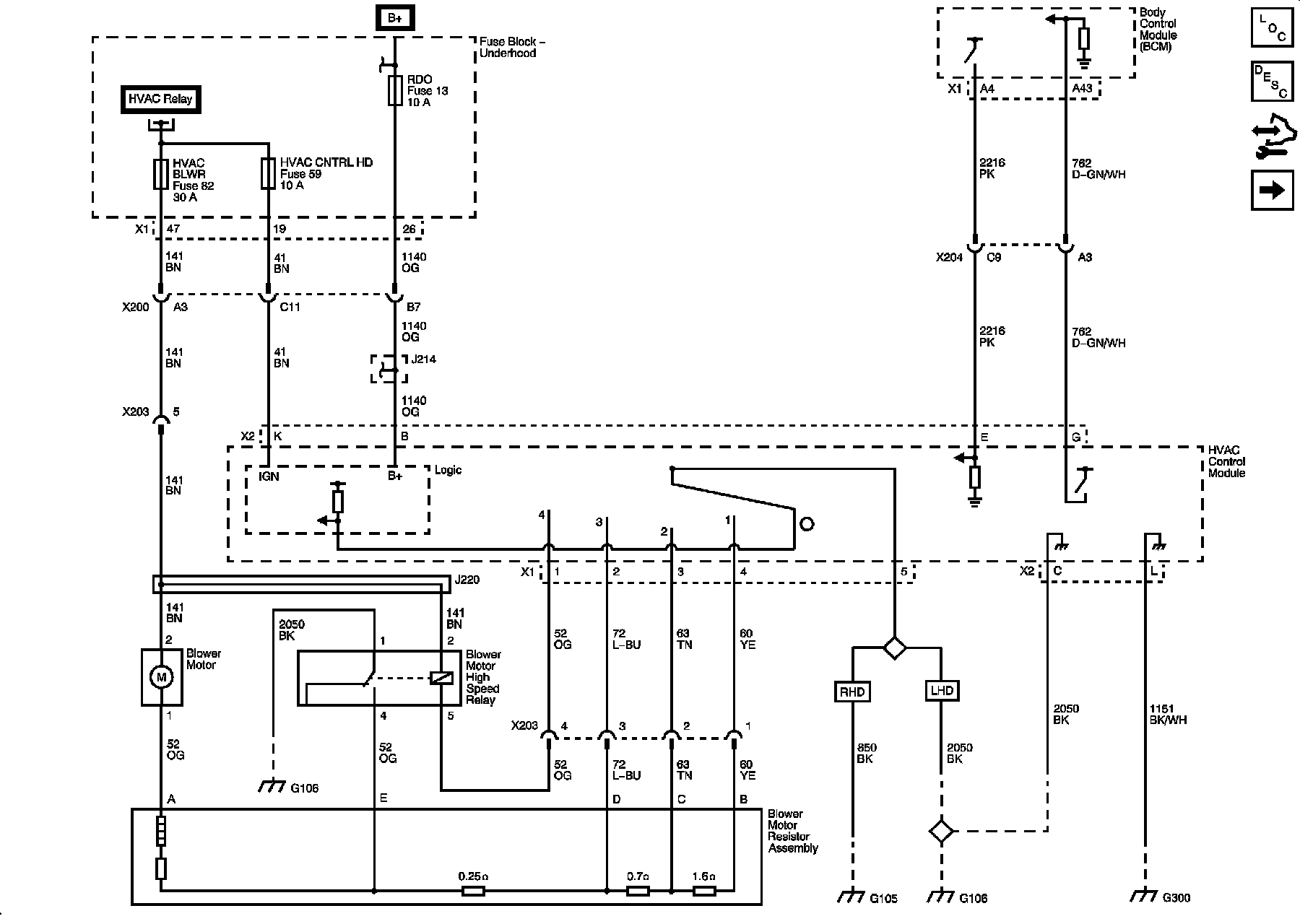

Module Power, Ground, Serial Data, and Blower Controls

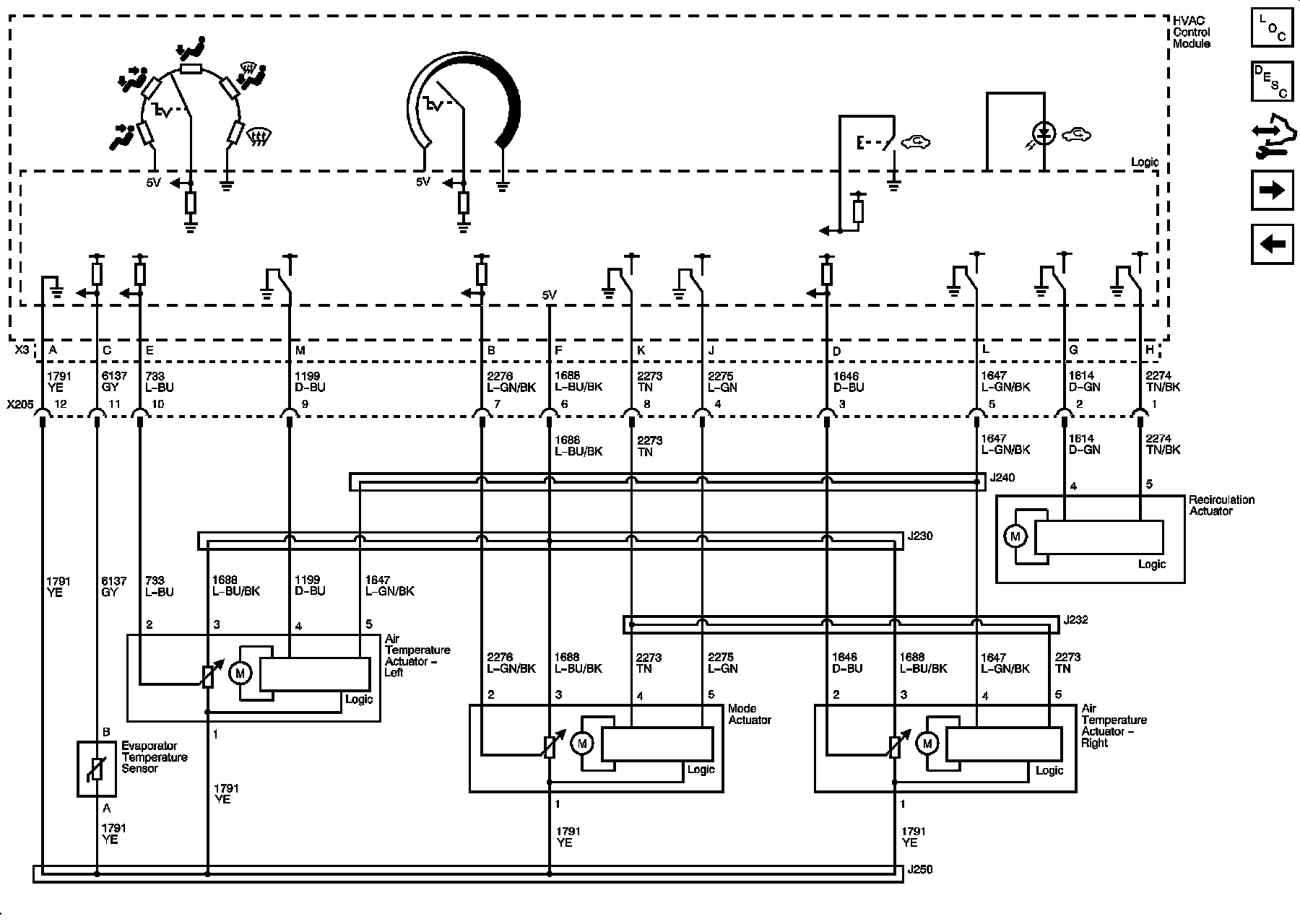

Air Delivery Control

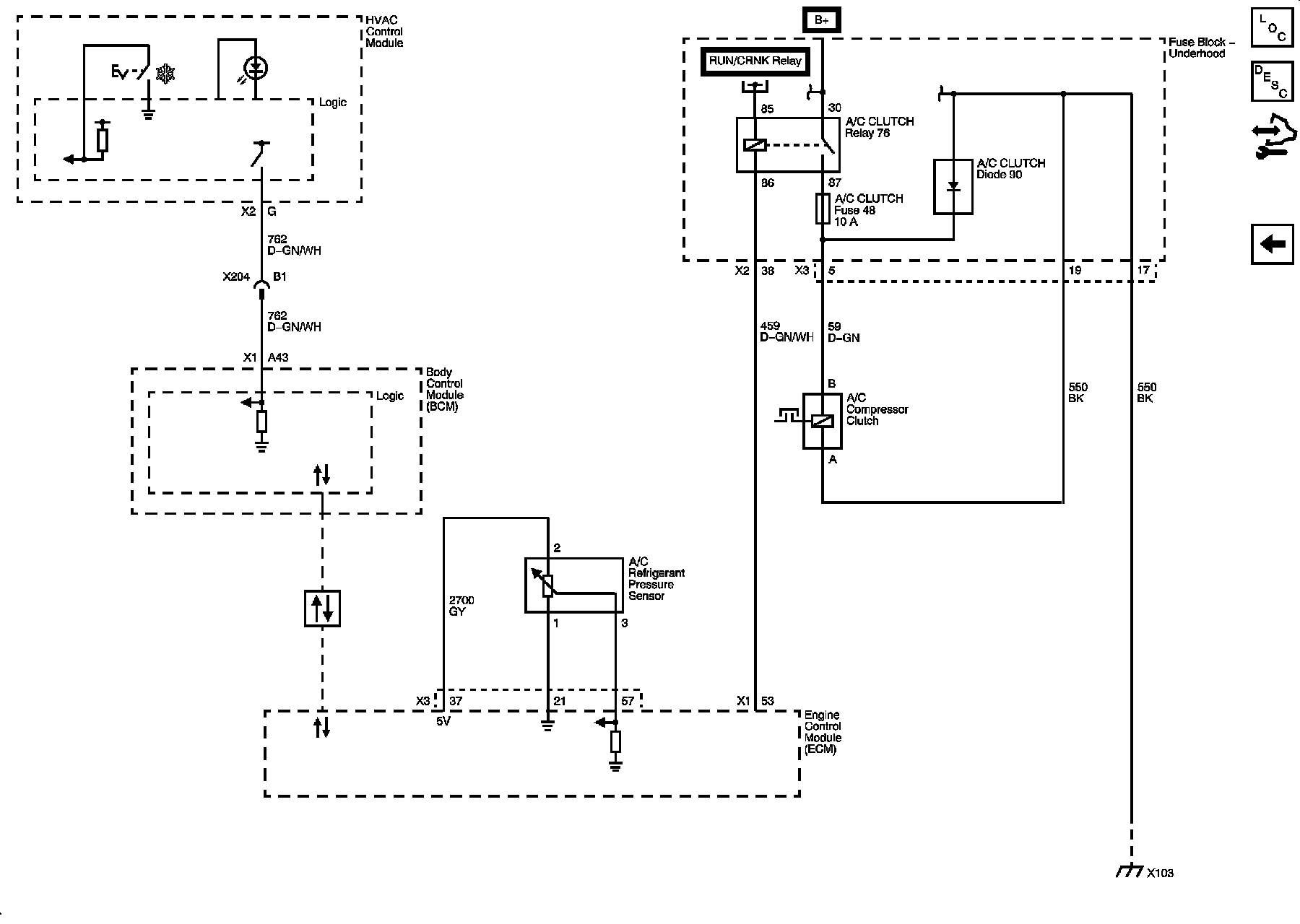

Compressor Controls
