Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Hummer
>>
2008
>>
H3 L5-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Body Control Module
Body Control Module

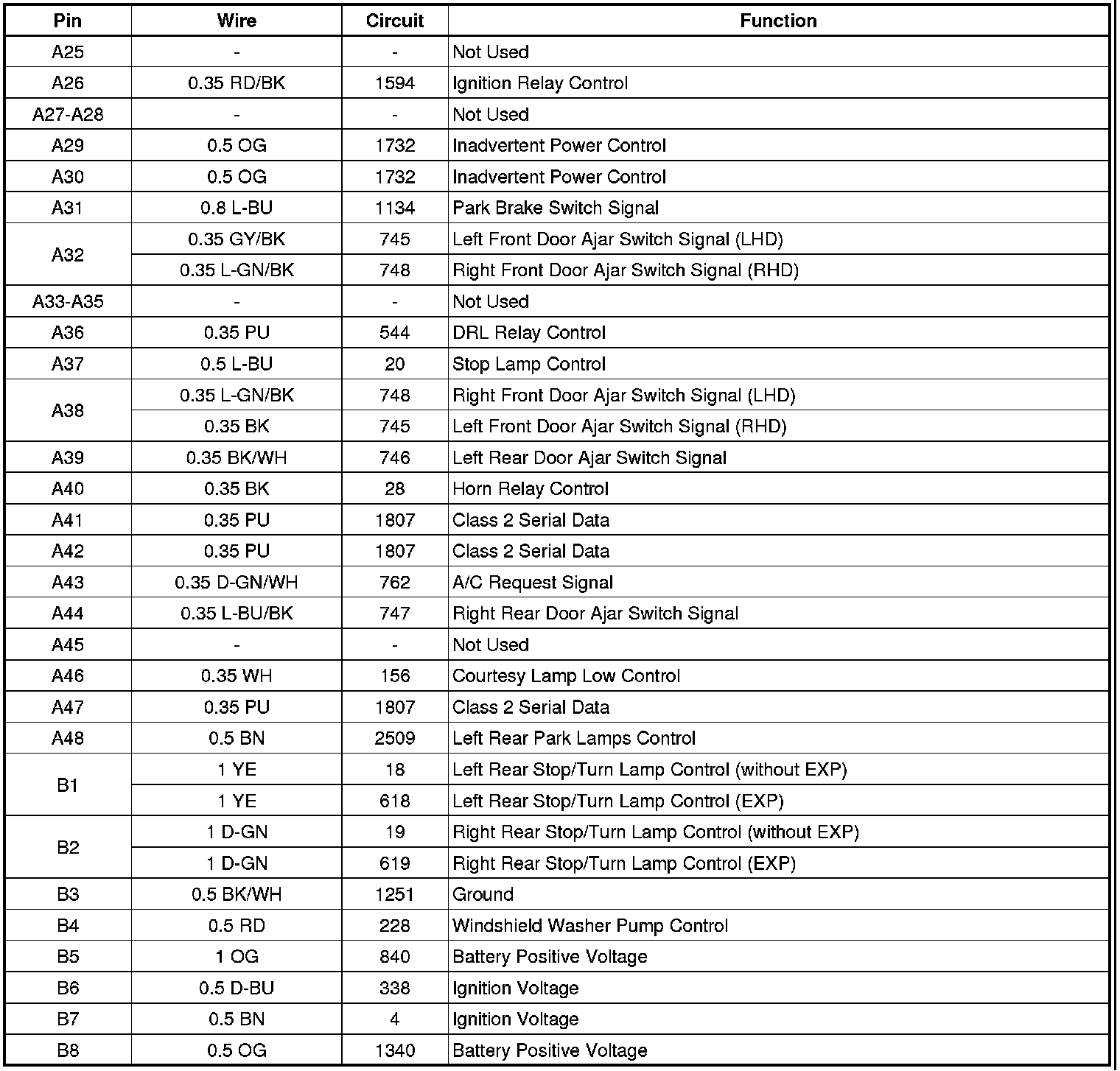

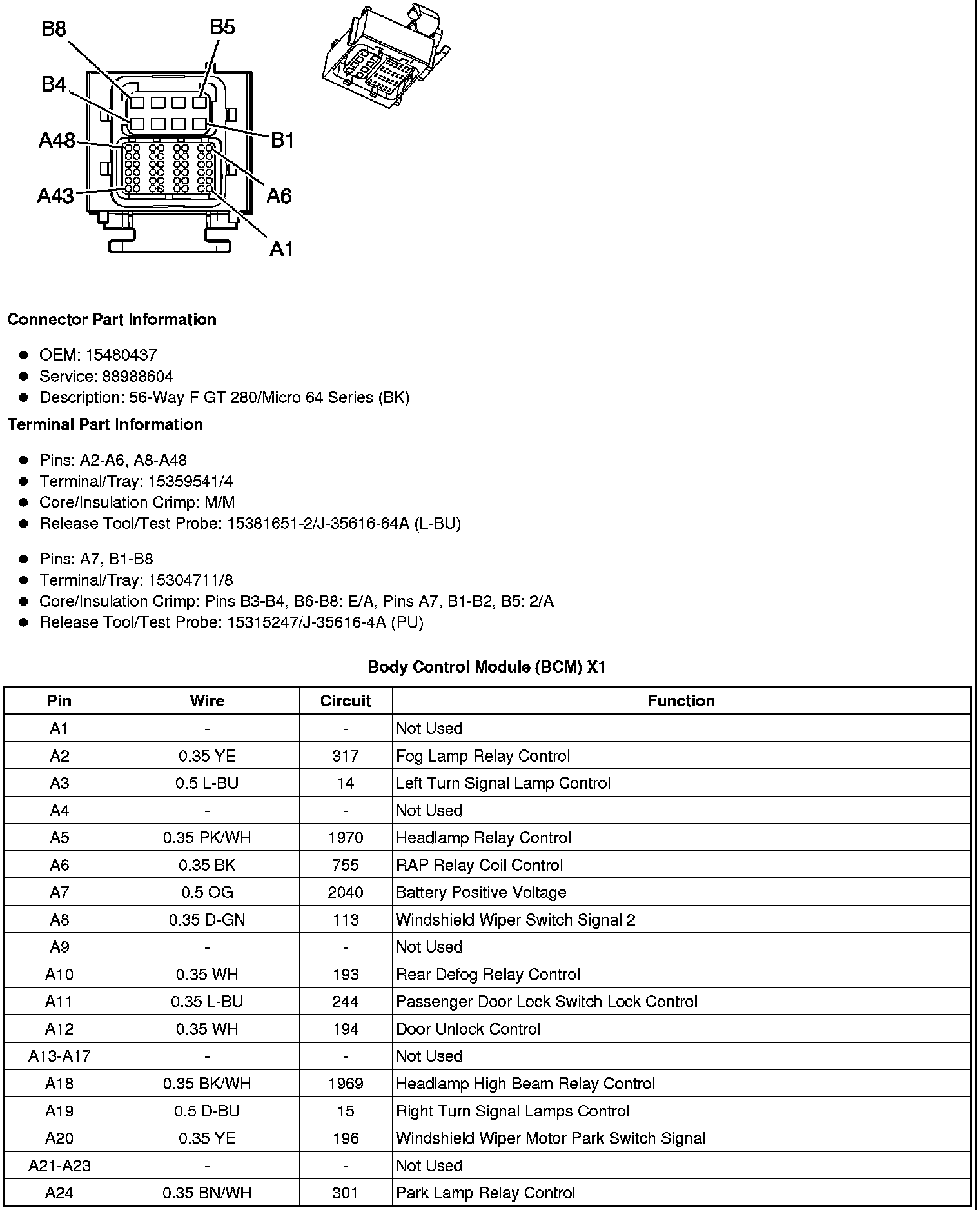

Body Control Module (BCM) X1

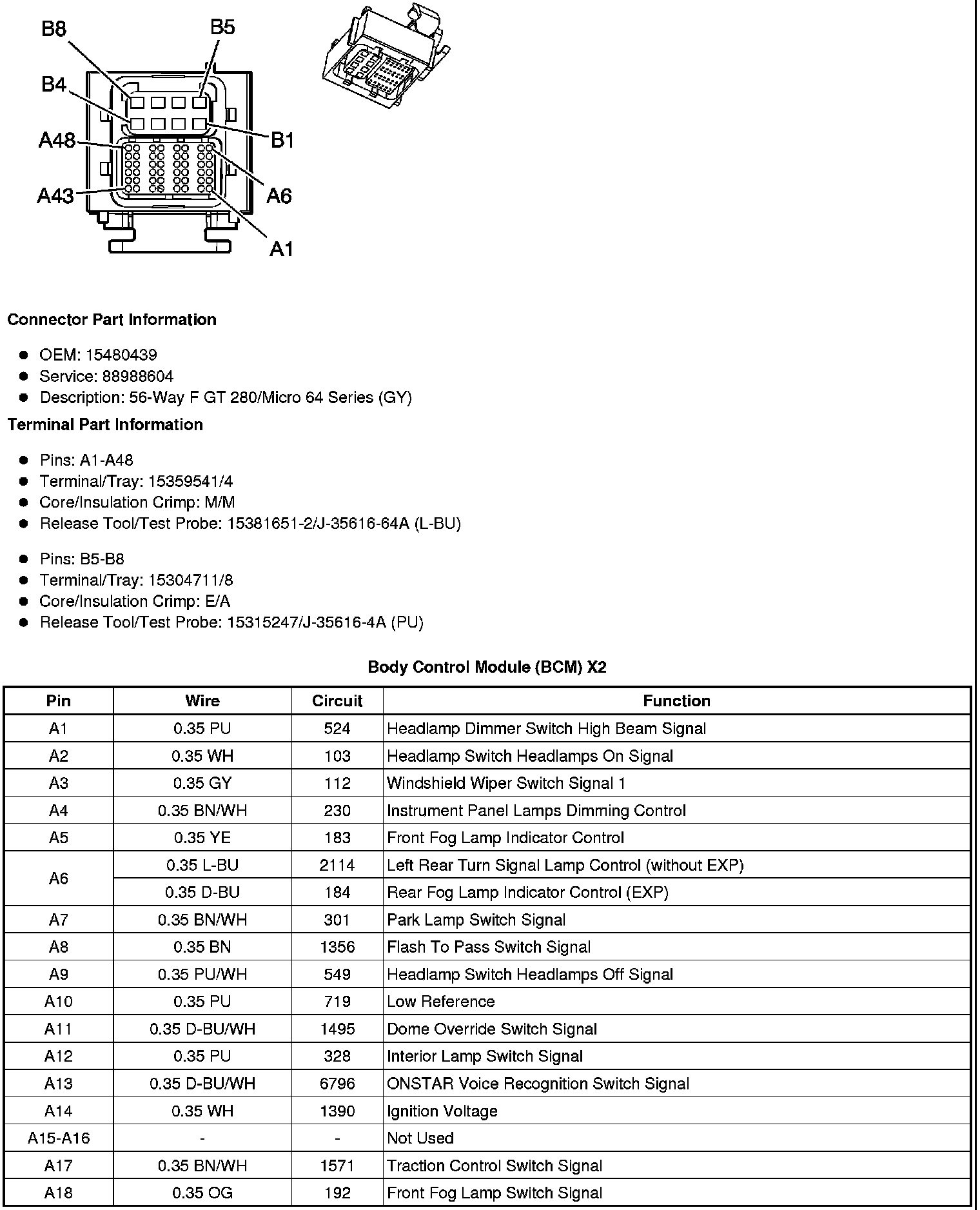

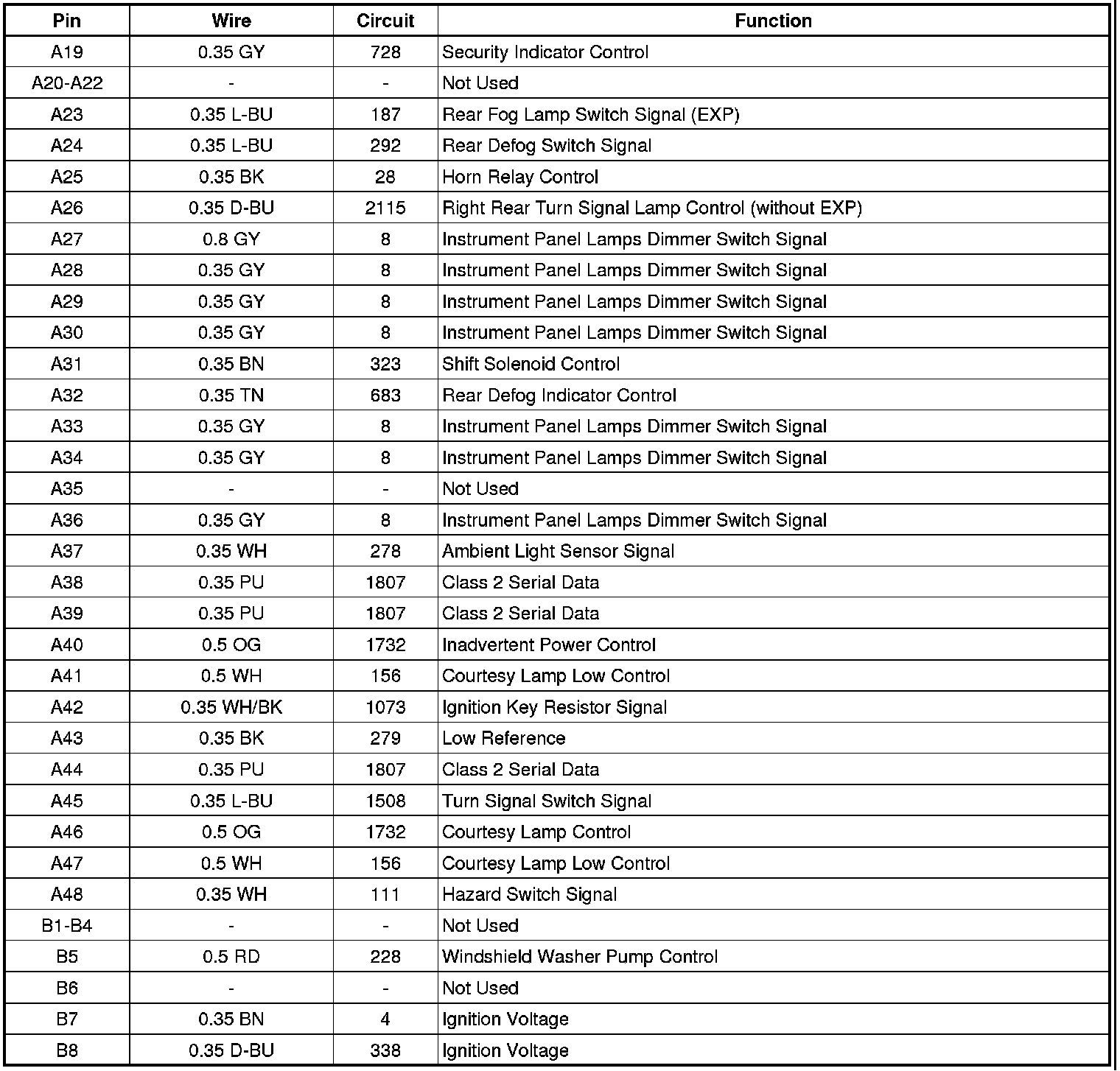

Body Control Module (BCM) X2
