Home >> Hummer >> 2008 >> H2 V8-6.2L >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Engine Controls Schematic 2

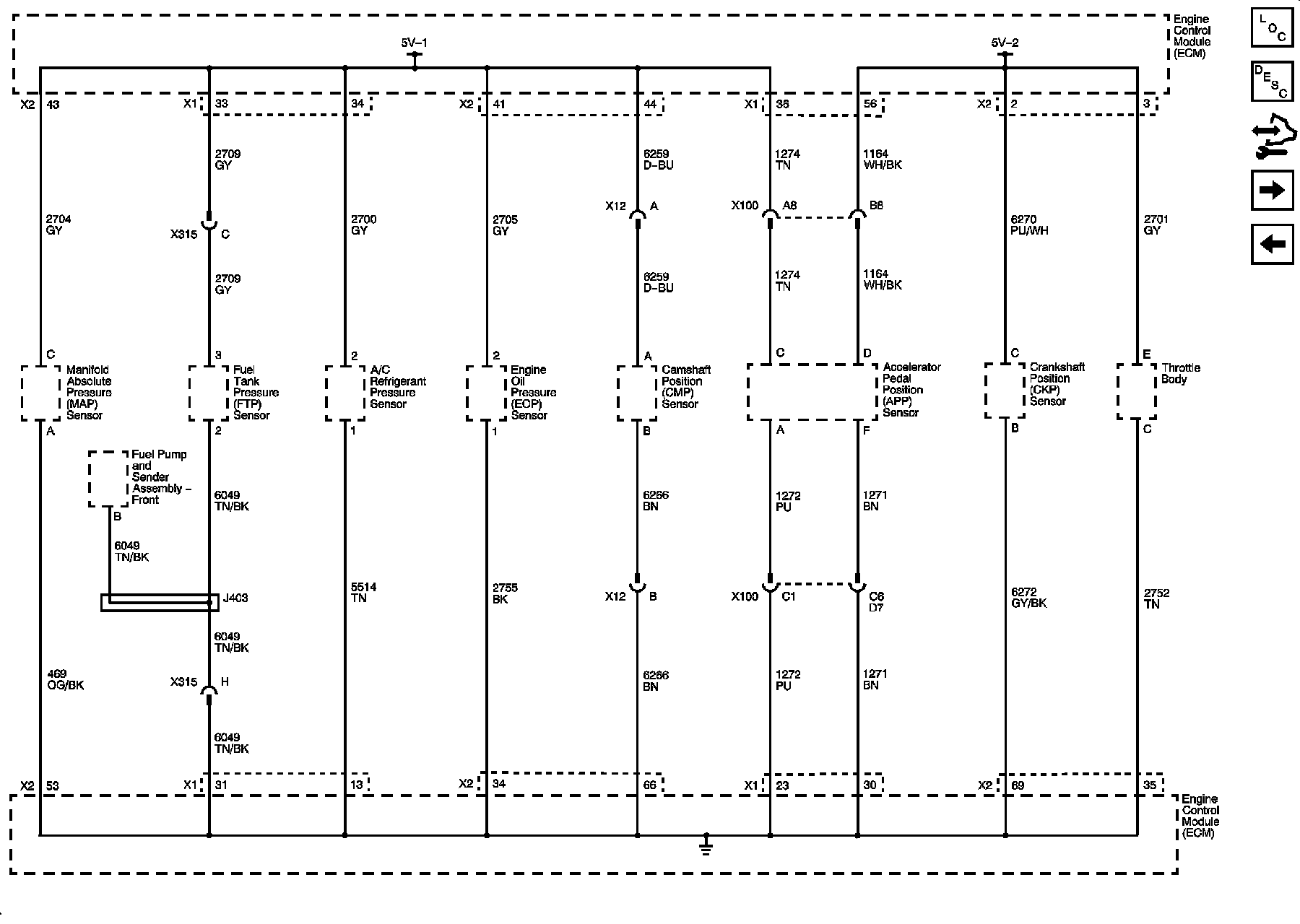

Engine Controls Schematic 2



Engine Controls Schematics

5-Volt and Low Reference
