Hummer
>>
2008
>>
H2 V8-6.2L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution Schematics
>>
G401
G401

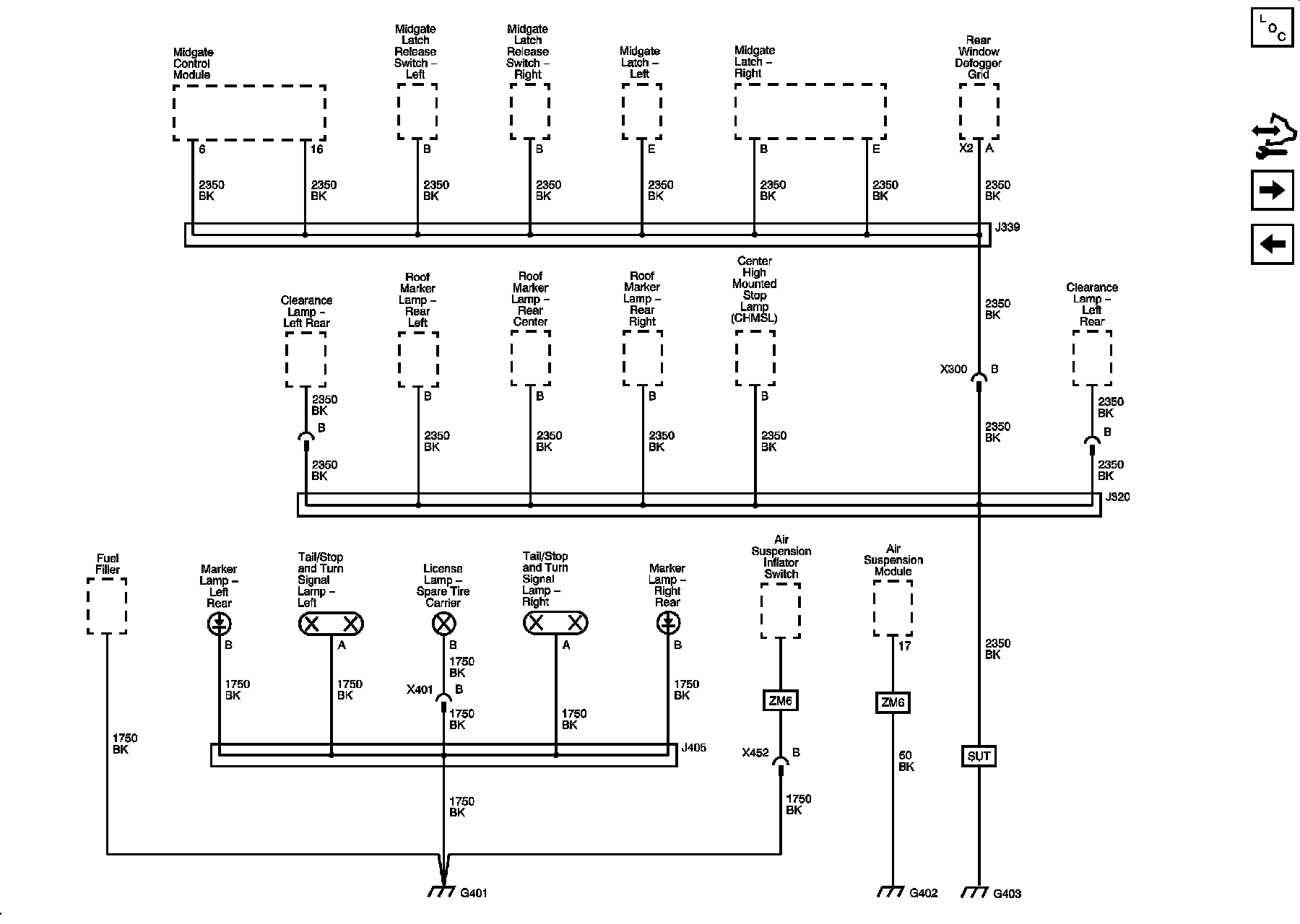

Ground Distribution Schematics
G401, G402 and G403
