Refrigerant Pressure Sensor / Switch, HVAC
>>
A/C Refrigerant Pressure Sensor
A/C Refrigerant Pressure Sensor

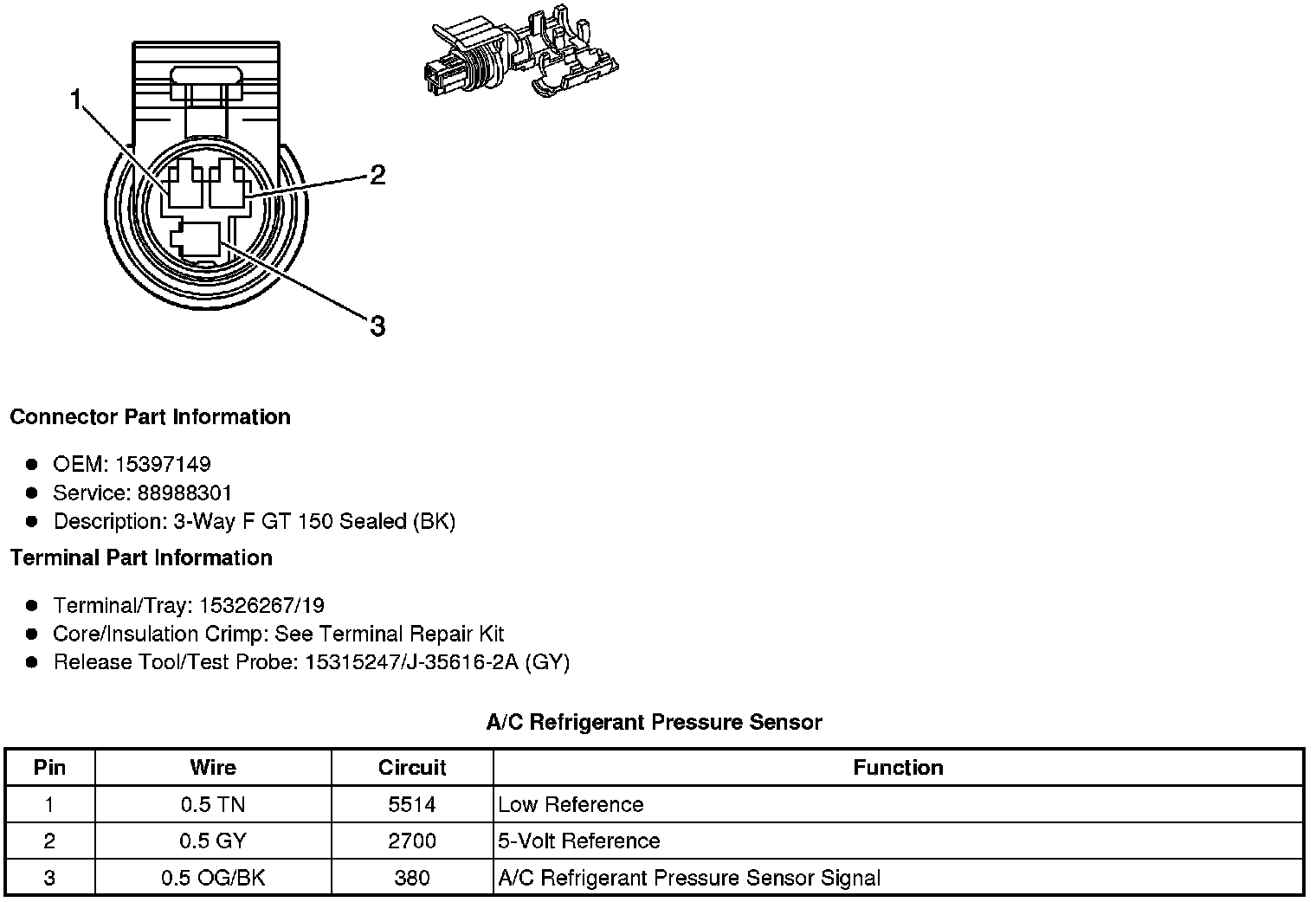

Component Connector End Views
A/C Refrigerant Pressure Sensor
