Fuel Pressure Sensor/Switch
Fuel Pressure Sensor/Switch

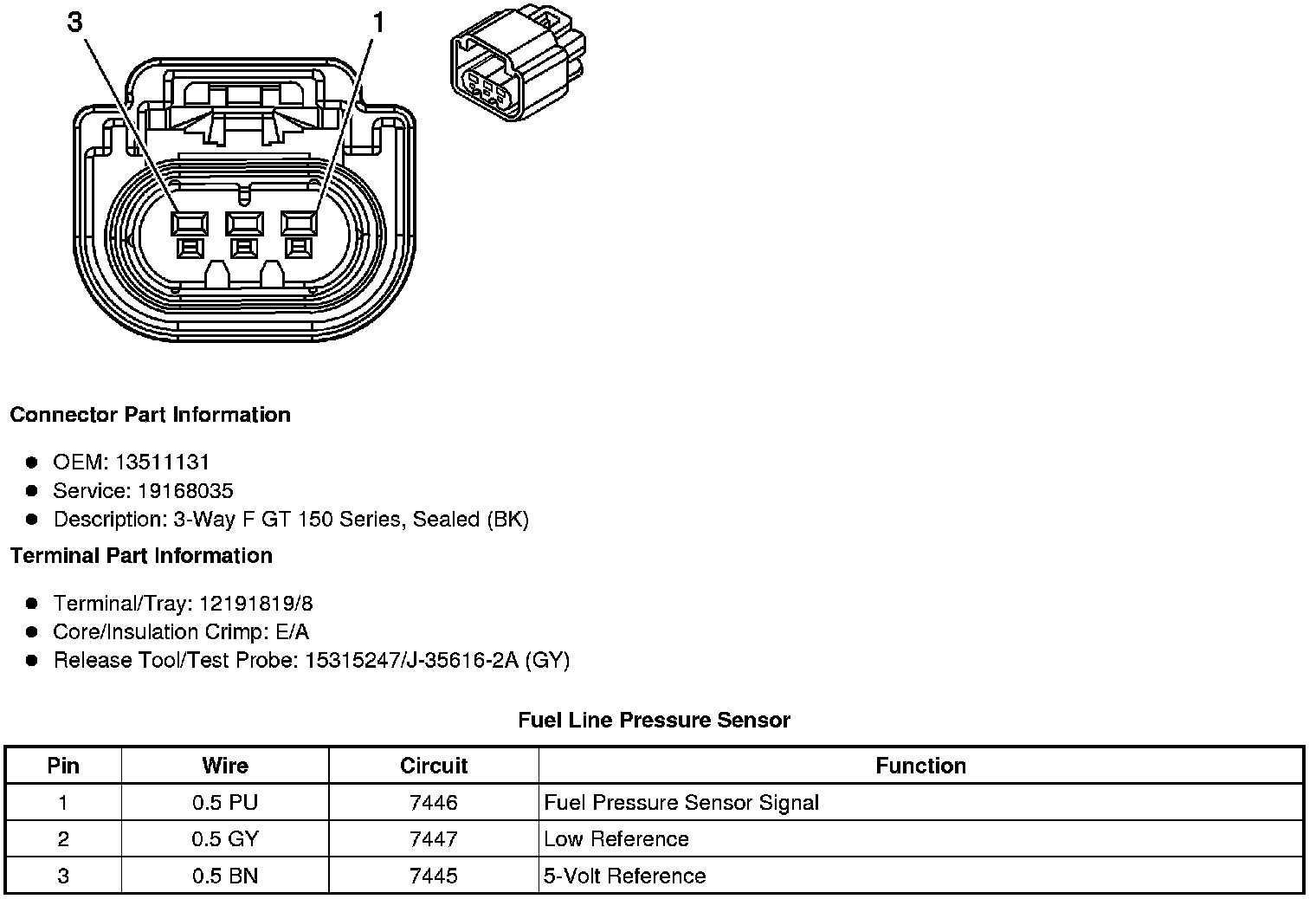

Component Connector End Views
Fuel Line Pressure Sensor
