Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Hummer
>>
2008
>>
H2 V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Door Module
>>

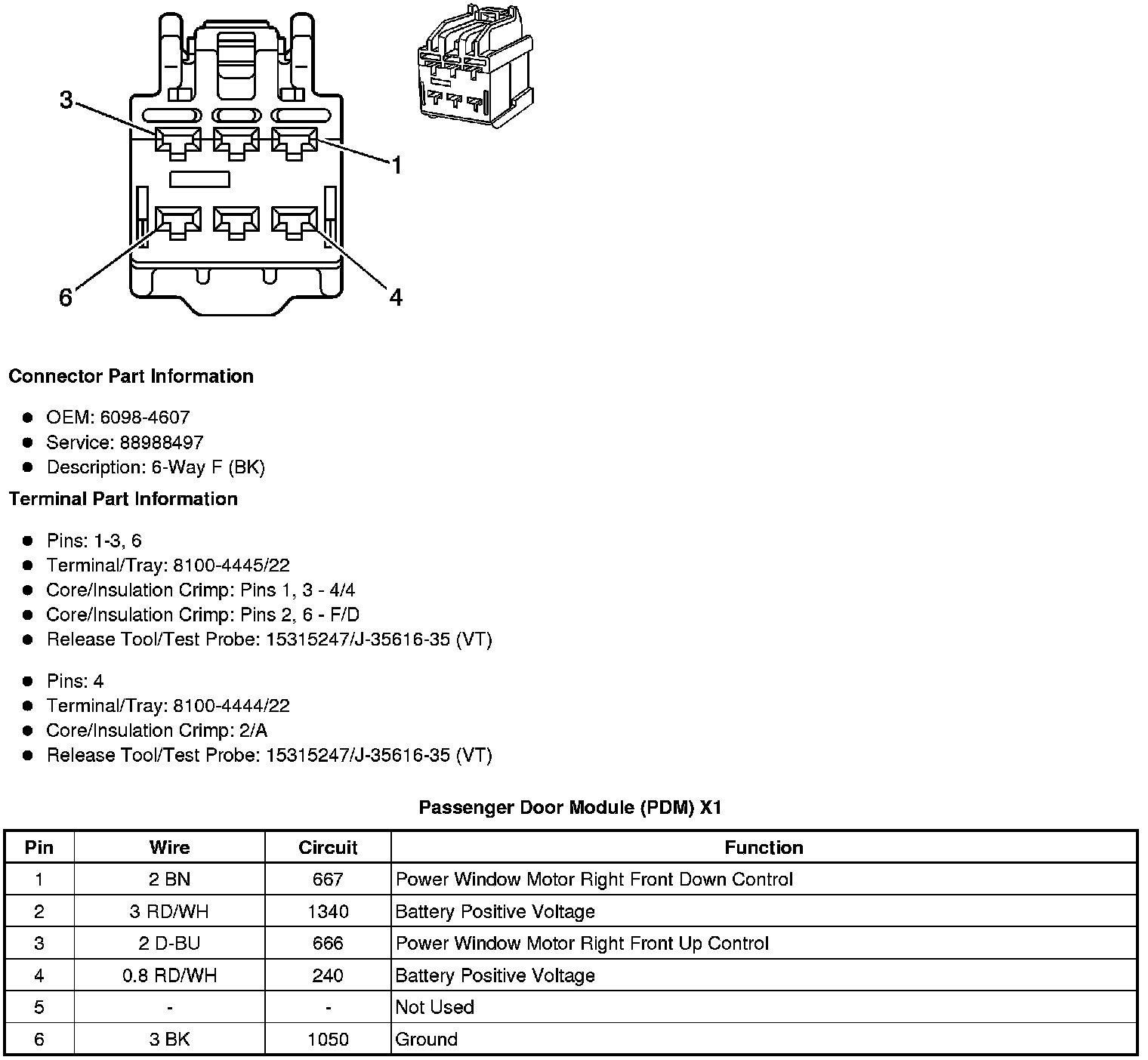

Passenger Door Module (PDM) X1
Passenger Door Module (PDM) X1
Component Connector End Views
Passenger
Door Module
(PDM) X1
