Hummer
>>
2007
>>
H3 L5-3.7L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Ignition Switch
>>
Diagrams
>>
Connector Views
>>

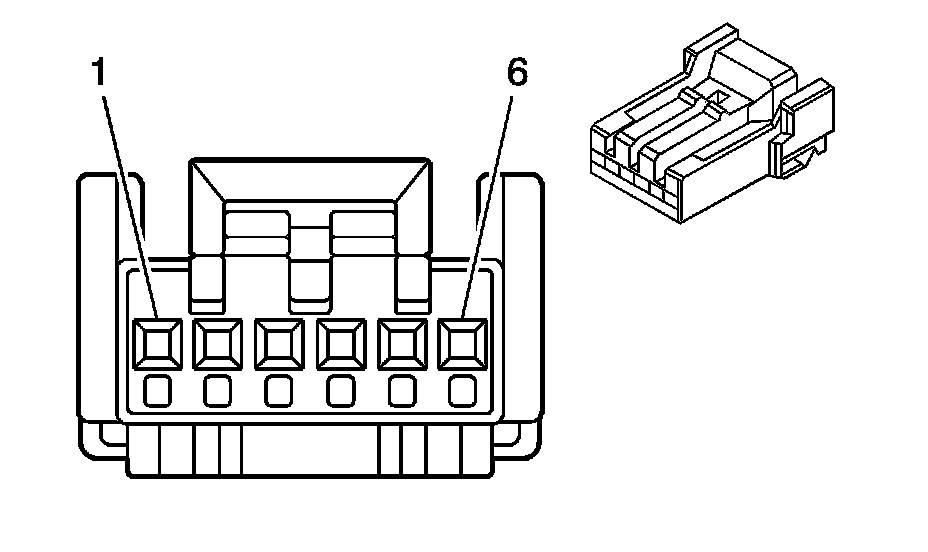

Power and Grounding Connector End Views
Power and Grounding Connector End Views
Power and Grounding Connector End Views

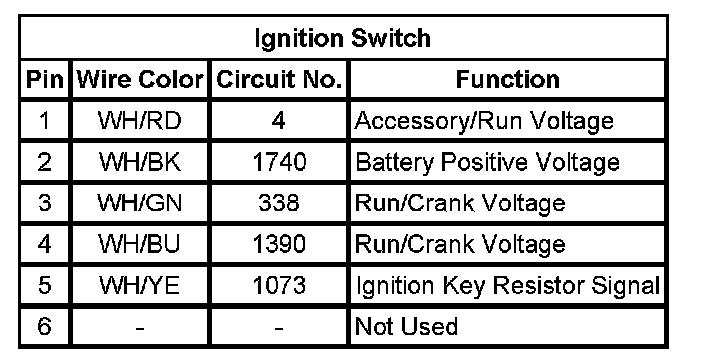

Ignition Switch
