Home >> Hummer >> 2007 >> H3 L5-3.7L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Application and ID

Fuse: Application and ID



Electrical Center Identification Views

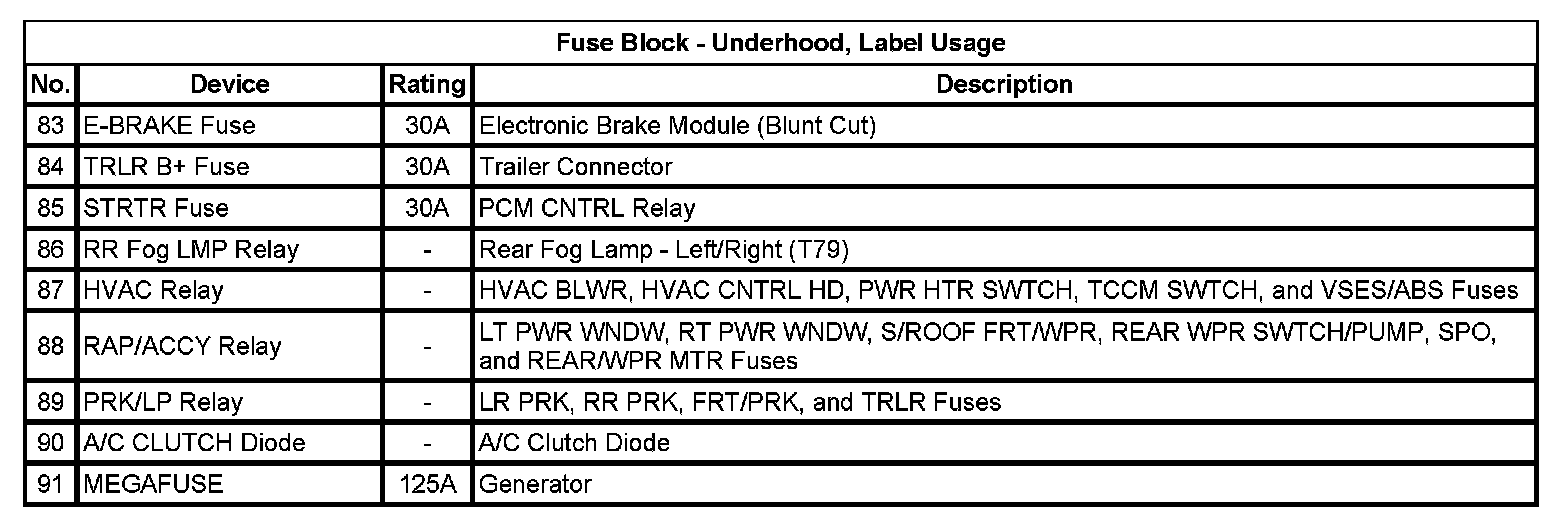

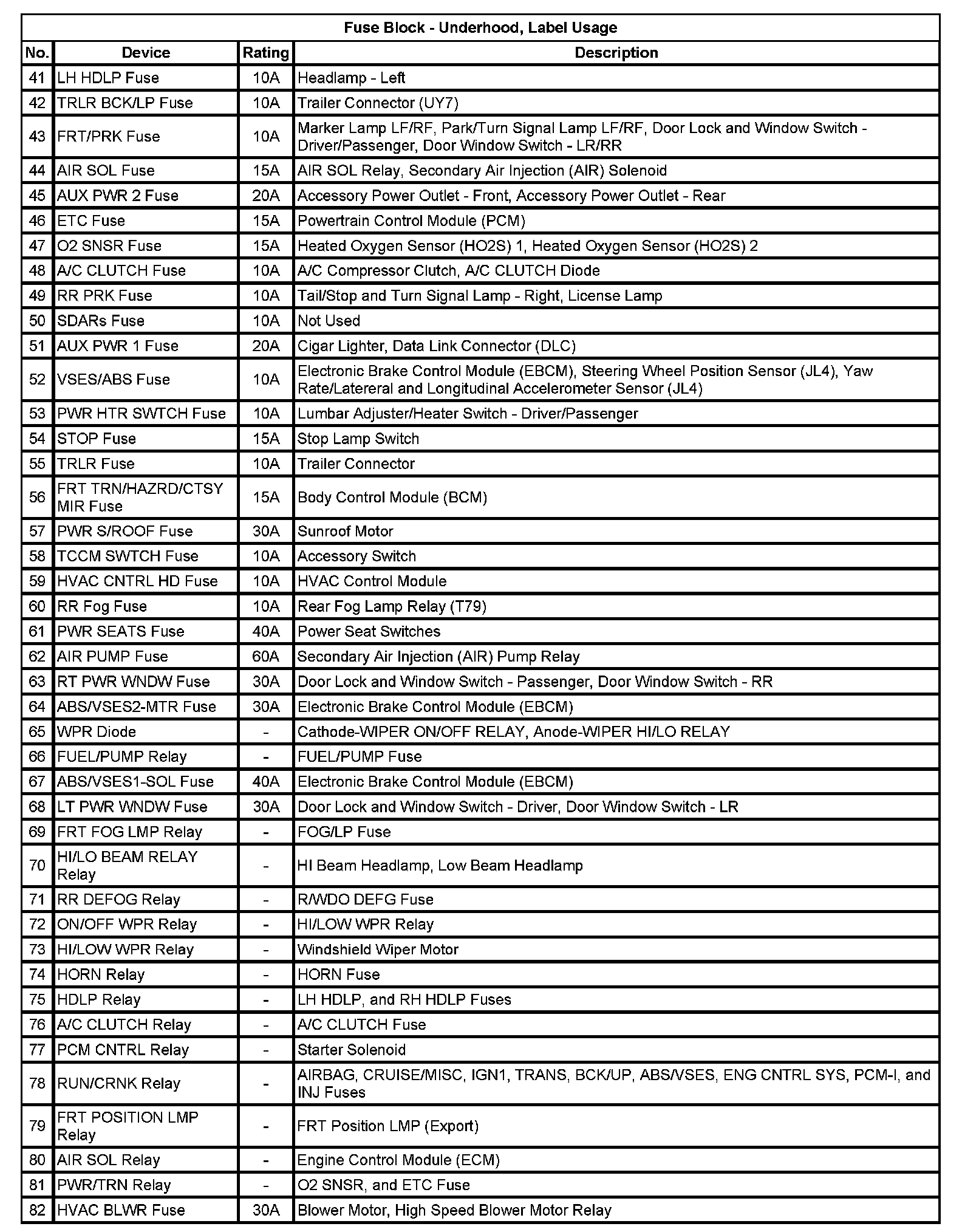

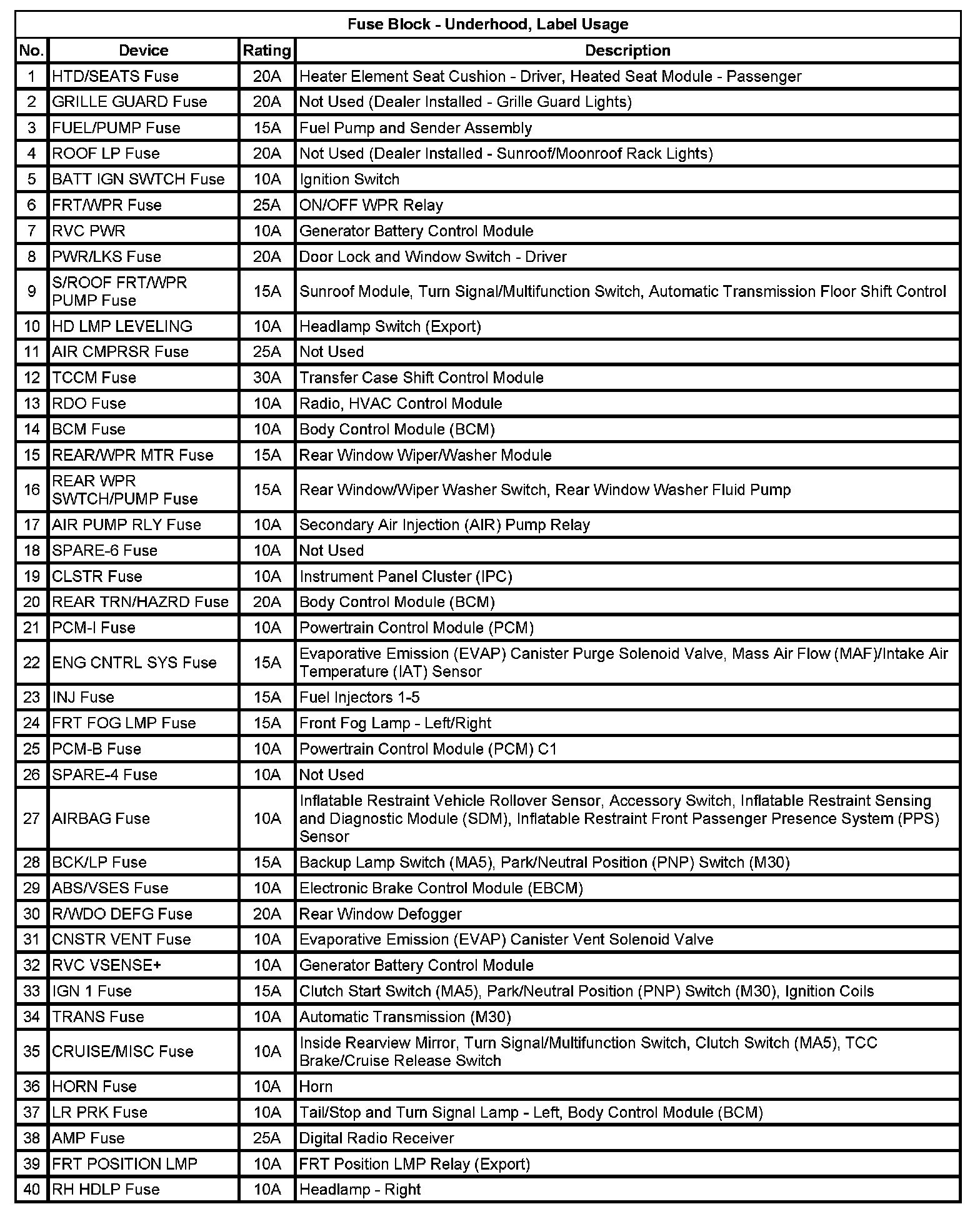

Fuse Block - Underhood, Label
