Trunk / Liftgate Ajar Switch
Trunk / Liftgate Ajar Switch
Lighting Systems Connector End Views

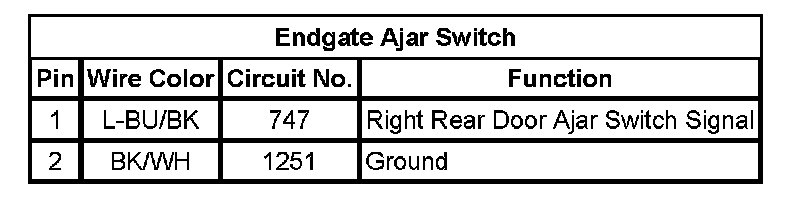

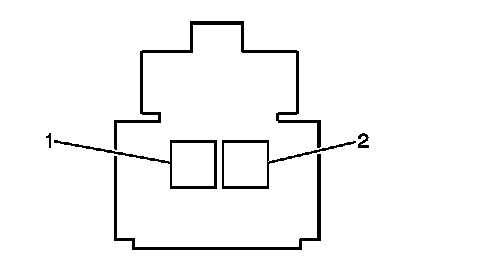

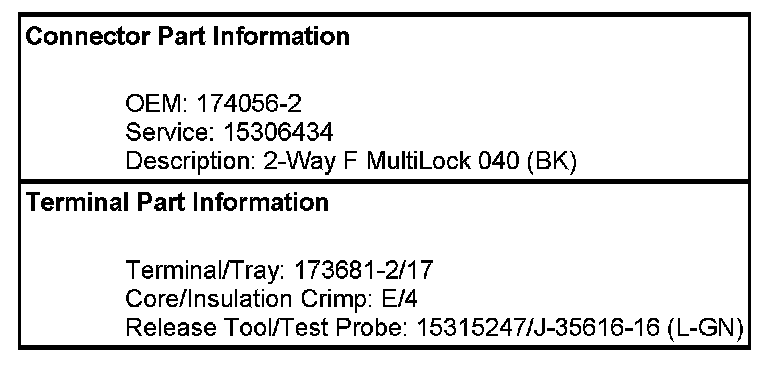

Endgate Ajar Switch
