Home >> Hummer >> 2007 >> H3 L5-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Transfer Case Actuator

Transfer Case Actuator

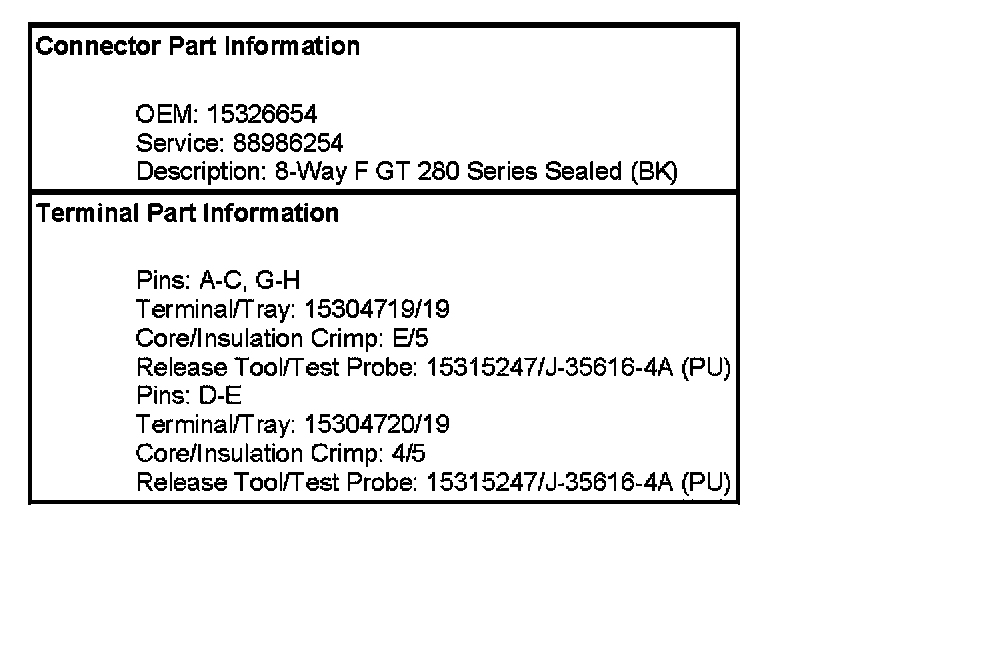

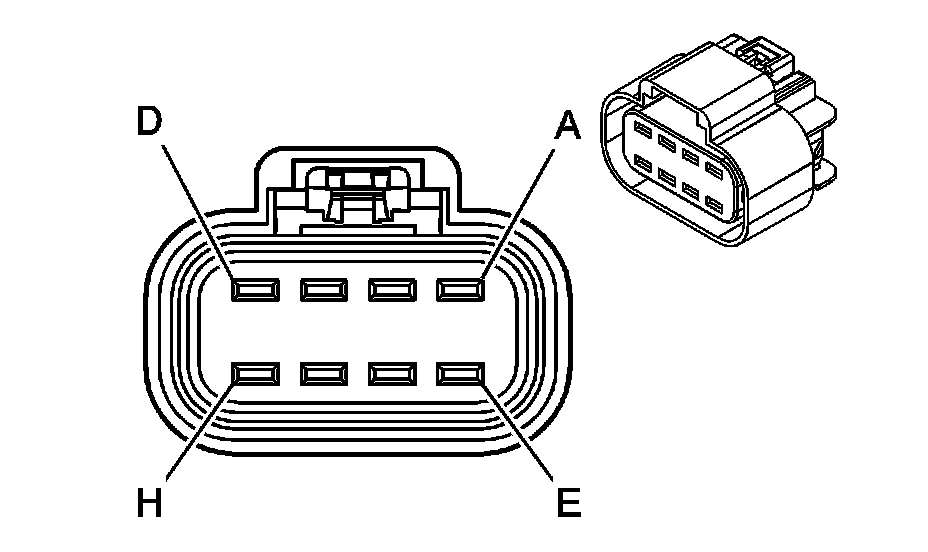

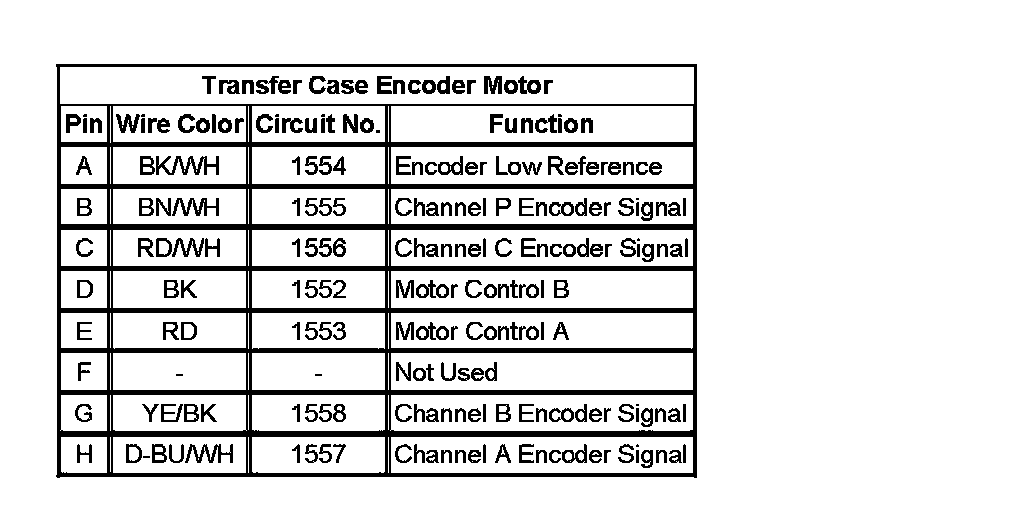

Transfer Case Encoder Motor







Transfer Case Encoder Motor:
