C117
C117
Inline Harness Connector End Views

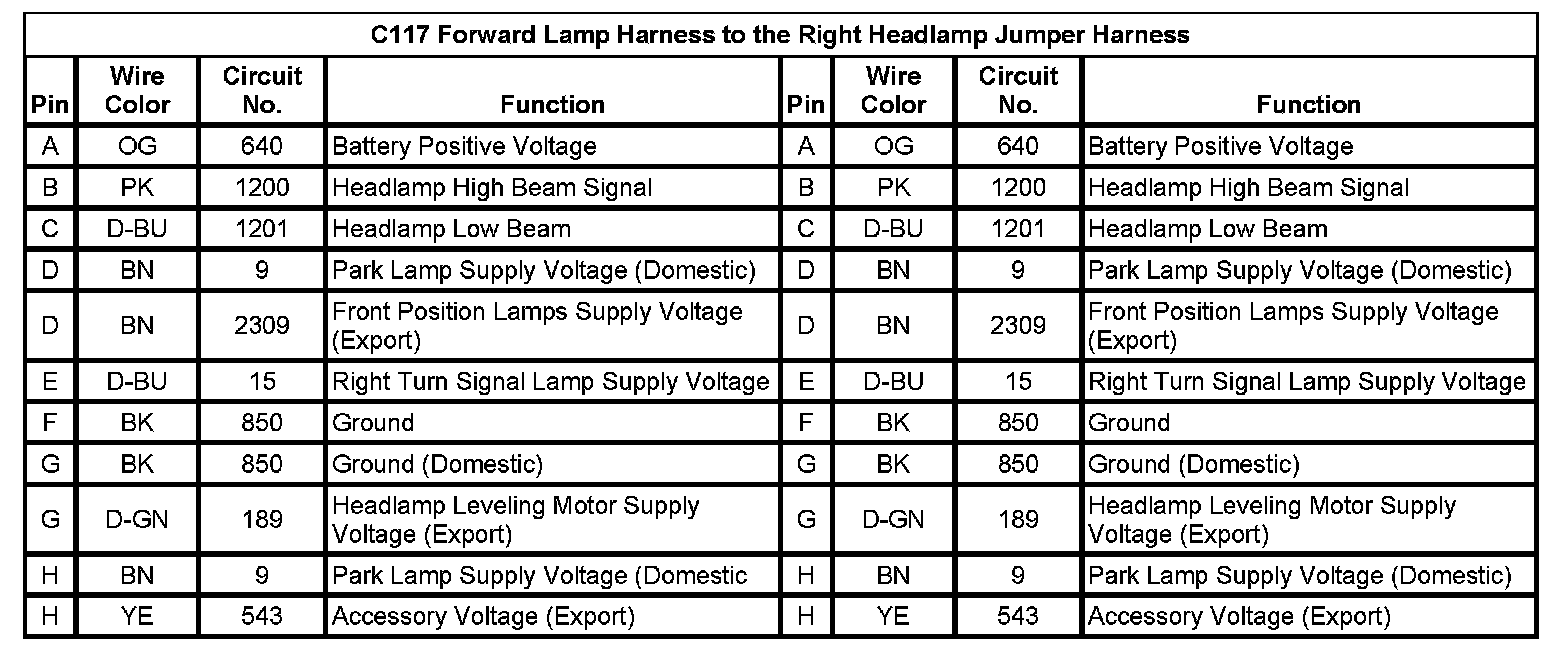

C117 Forward Lamp Harness to the Right Headlamp Jumper Harness
