Shift Interlock, A/T
Shift Interlock, A/T

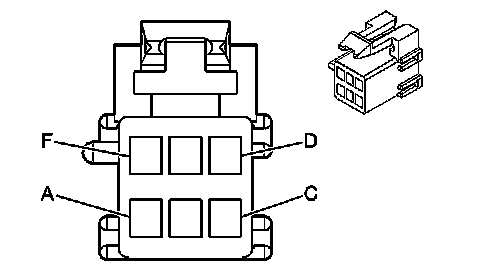

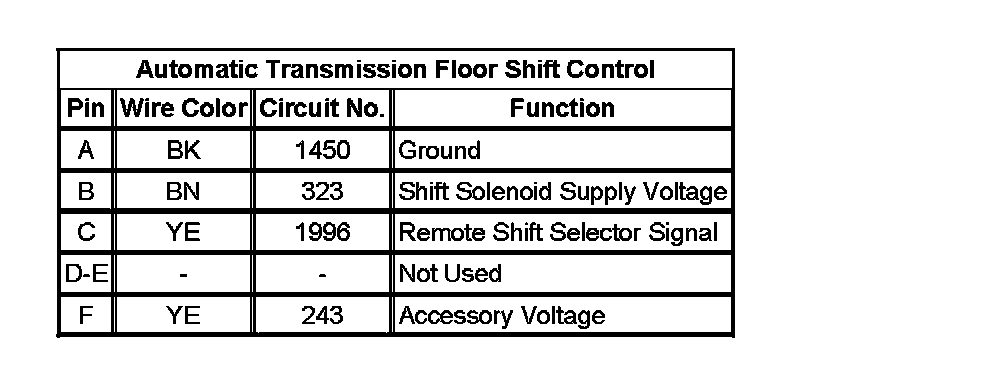

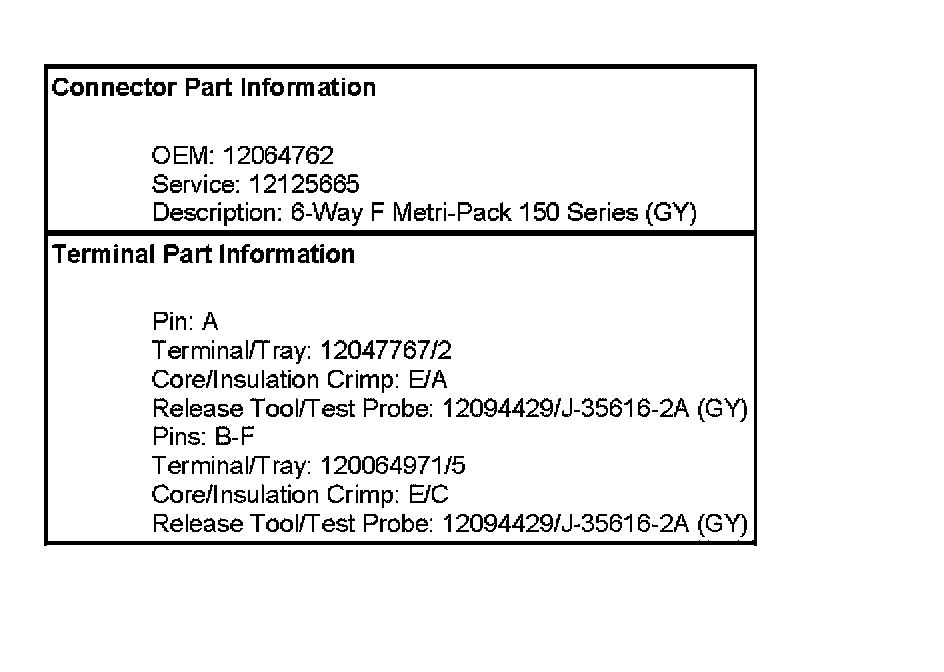

Automatic Transmission Floor Shift Control
Automatic Transmission Floor Shift Control:
