System Diagram



Mirror Connector End Views

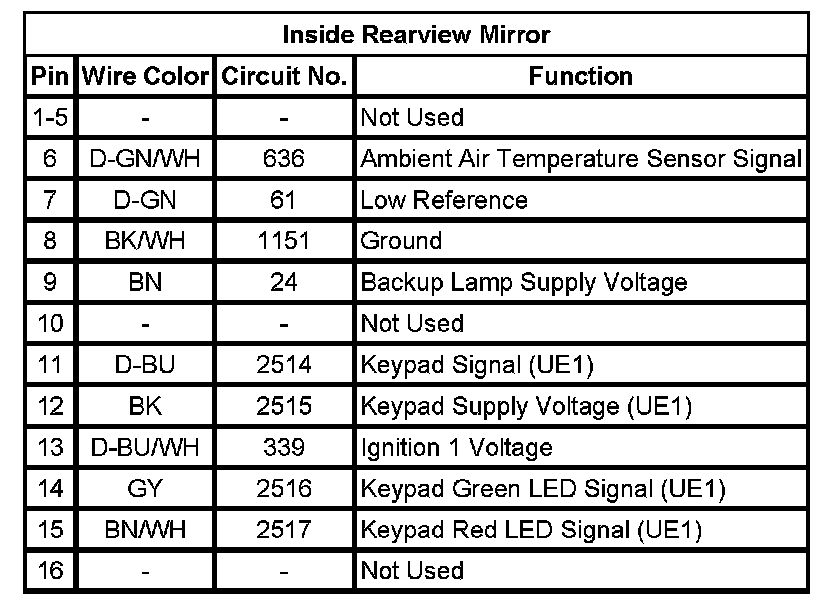

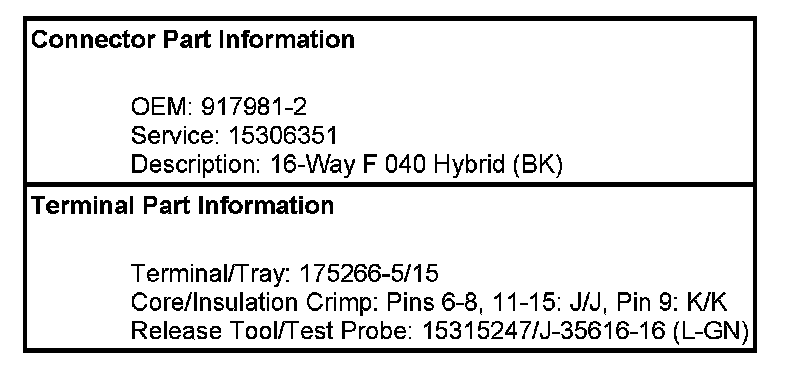

Inside Rearview Mirror

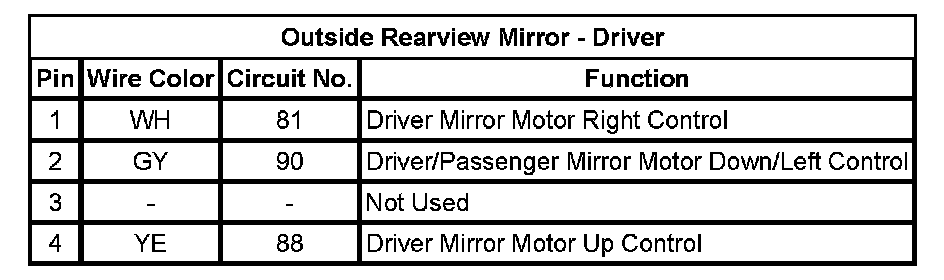

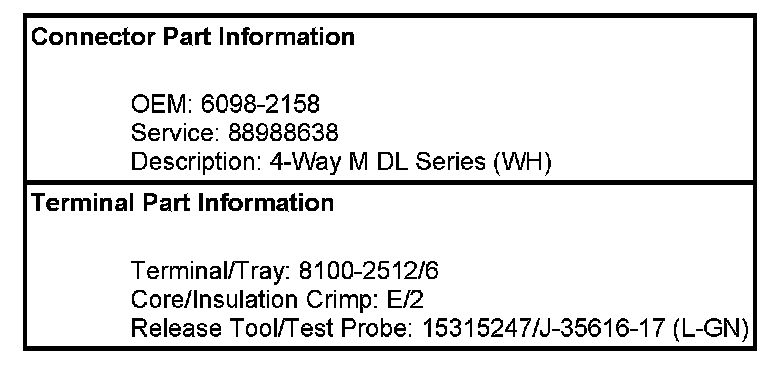

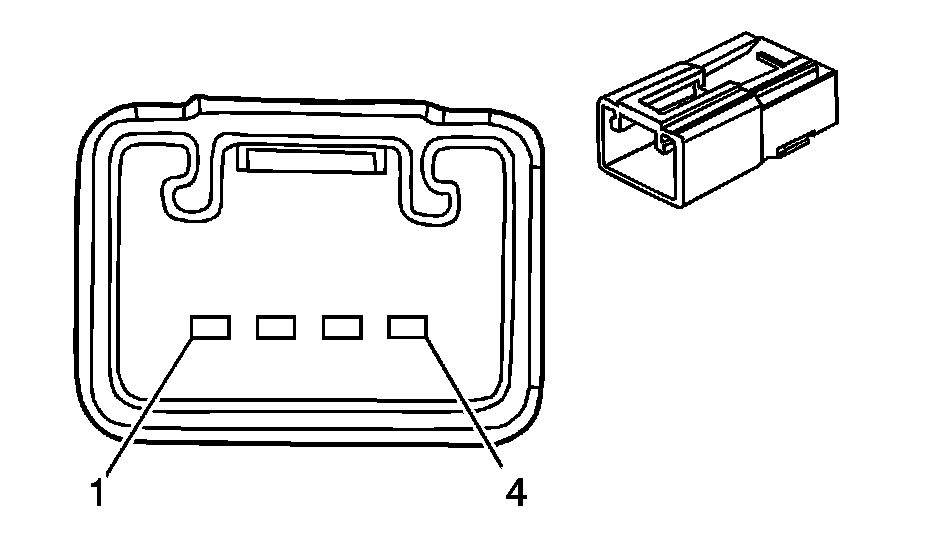

Outside Rearview Mirror - Driver

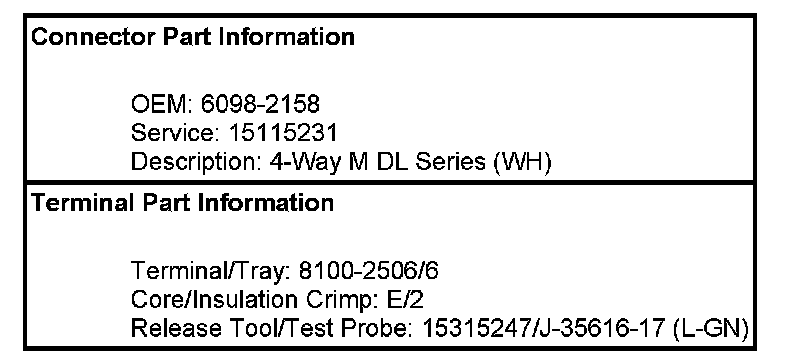

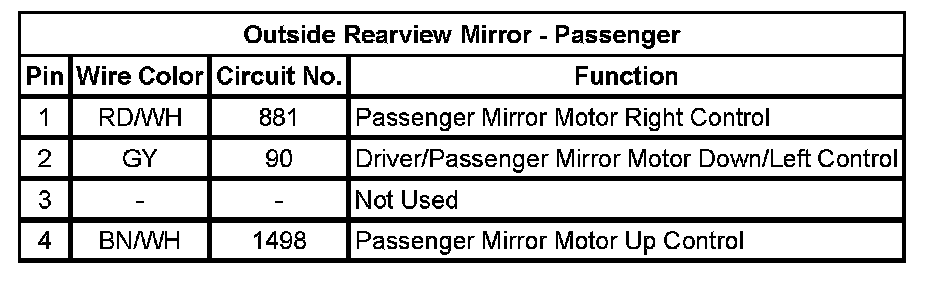

Outside Rearview Mirror - Passenger
