Heated Glass Element
Heated Glass Element

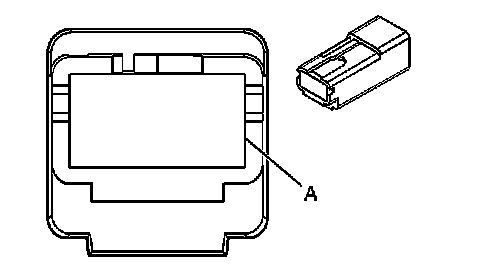

Window Systems Connector End Views

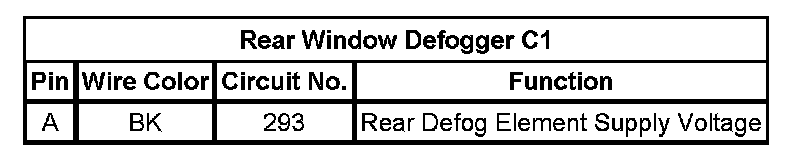

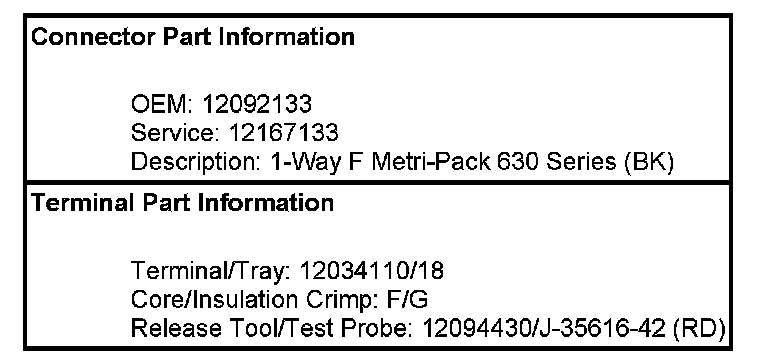

Rear Window Defogger C1

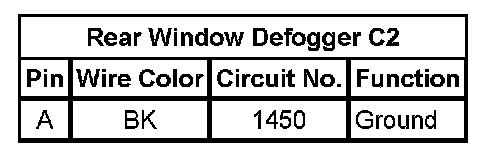

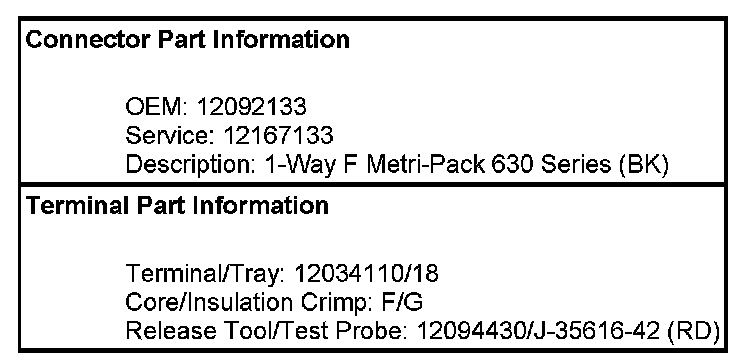

Rear Window Defogger C2
