Trunk / Liftgate Relay
Trunk / Liftgate Relay

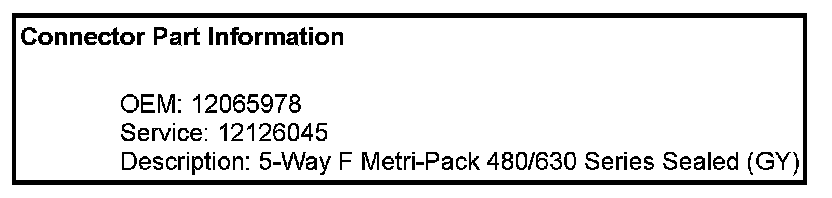

Vehicle Access Connector End Views

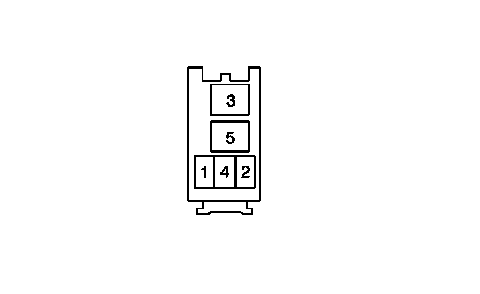

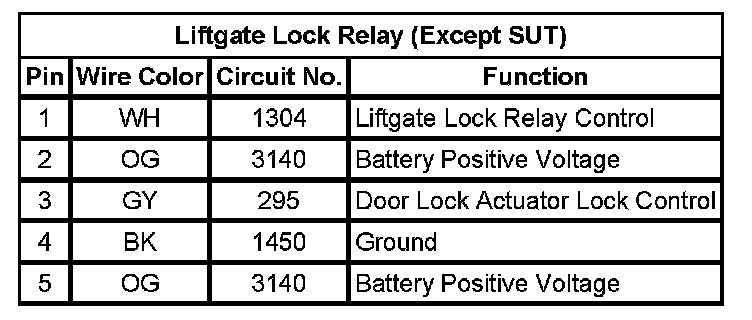

Liftgate Lock Relay (Except SUT)
