Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Hummer
>>
2006
>>
H3 L5-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transfer Case
>>
Transfer Case Actuator
Transfer Case Actuator

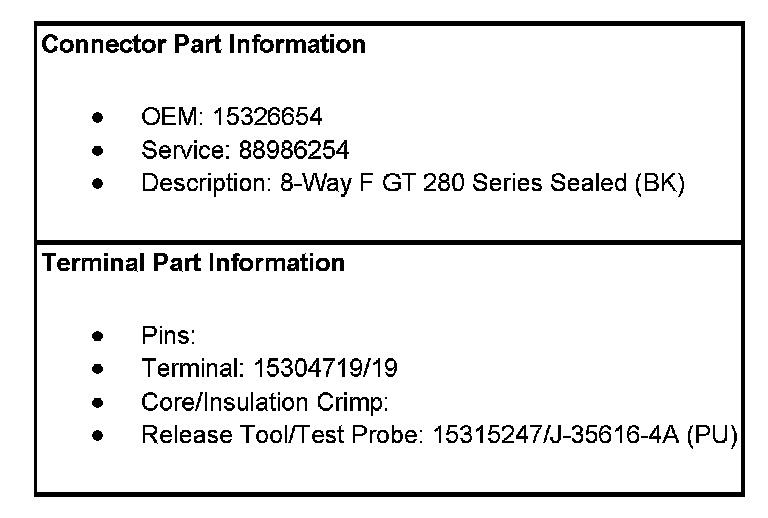

Transfer Case Control Connector End Views

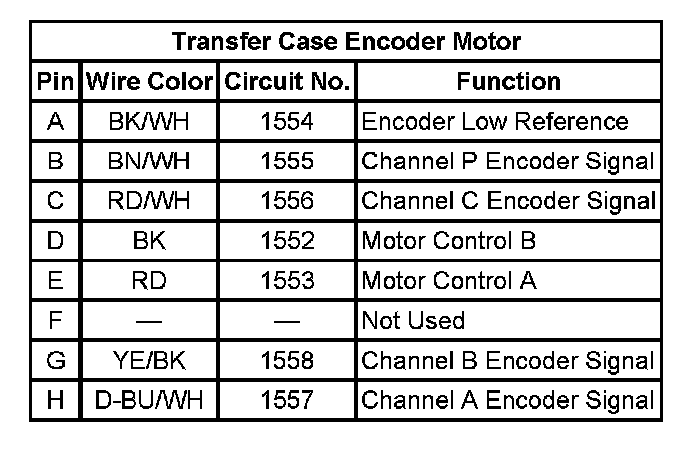

Transfer Case Encoder Motor:
