Home
>>
Hummer
>>
2006
>>
H3 L5-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transfer Case
>>
System Diagram
System Diagram
Transfer Case

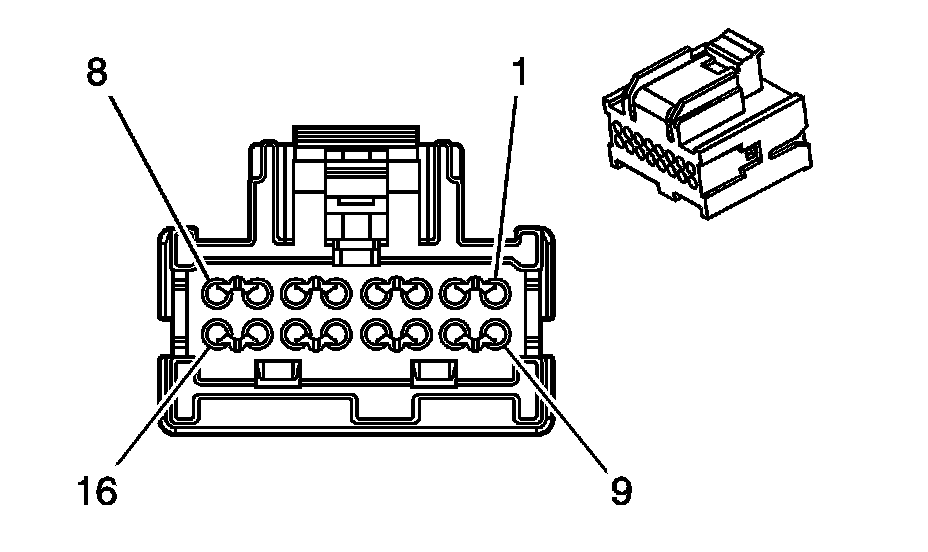

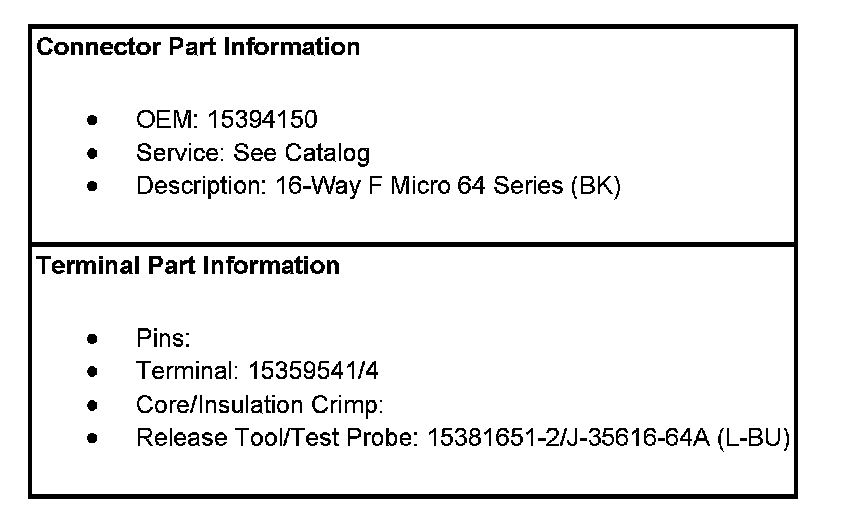

Control Connector End Views

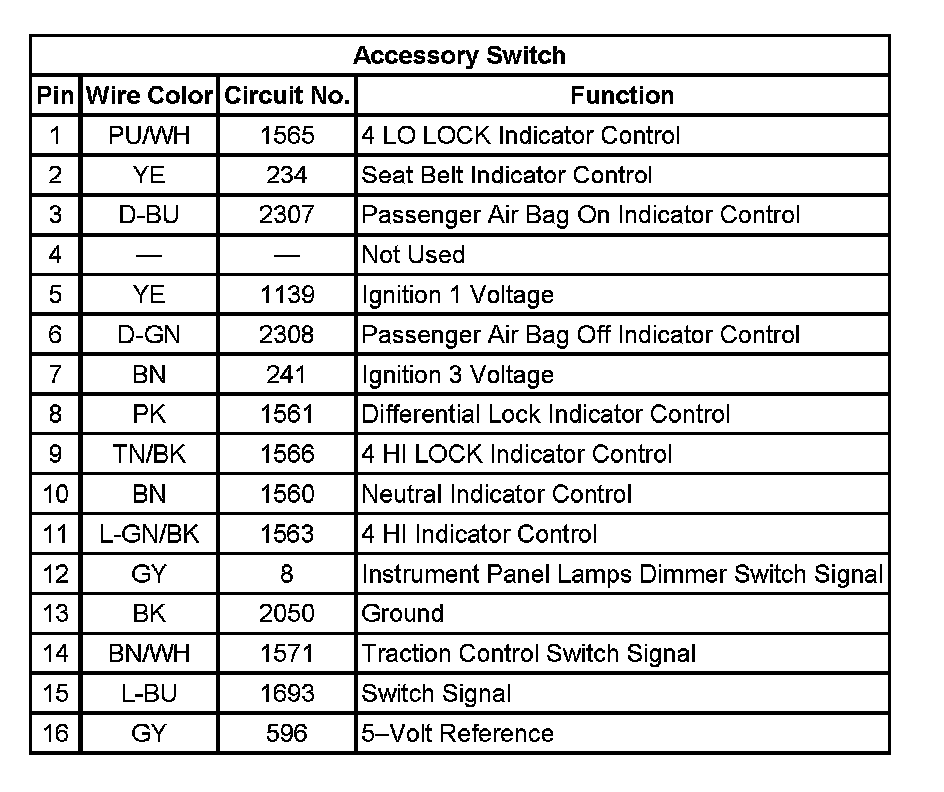

Accessory Switch:
