Differential Assembly
Differential Assembly

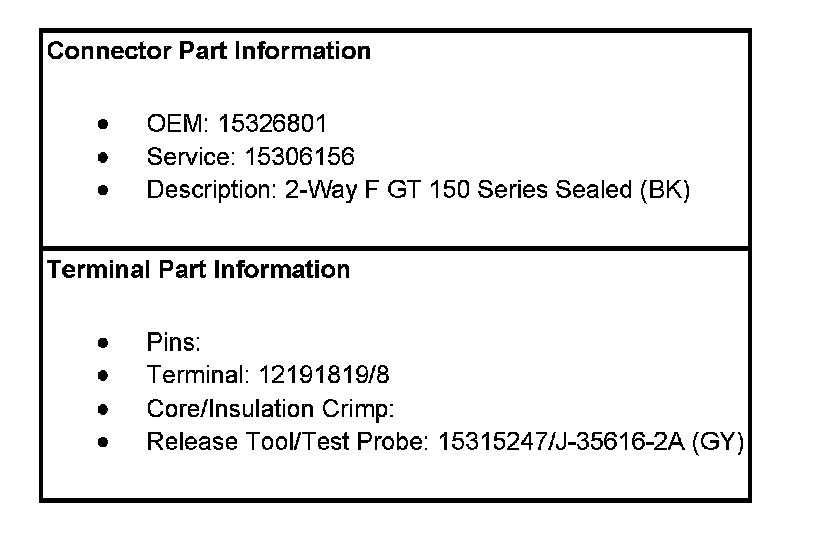

Rear Axle Connector End Views

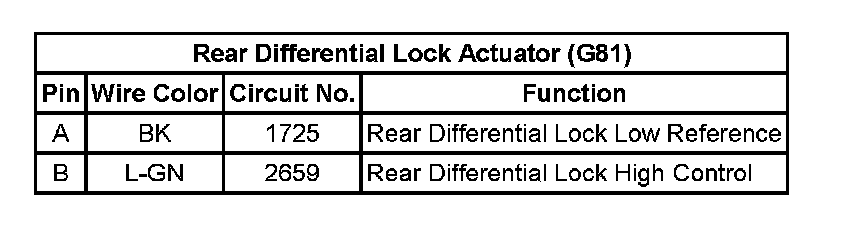

Rear Differential Lock Actuator (G81):
