Differential Assembly
>>
Rear Drive Axle
Rear Drive Axle

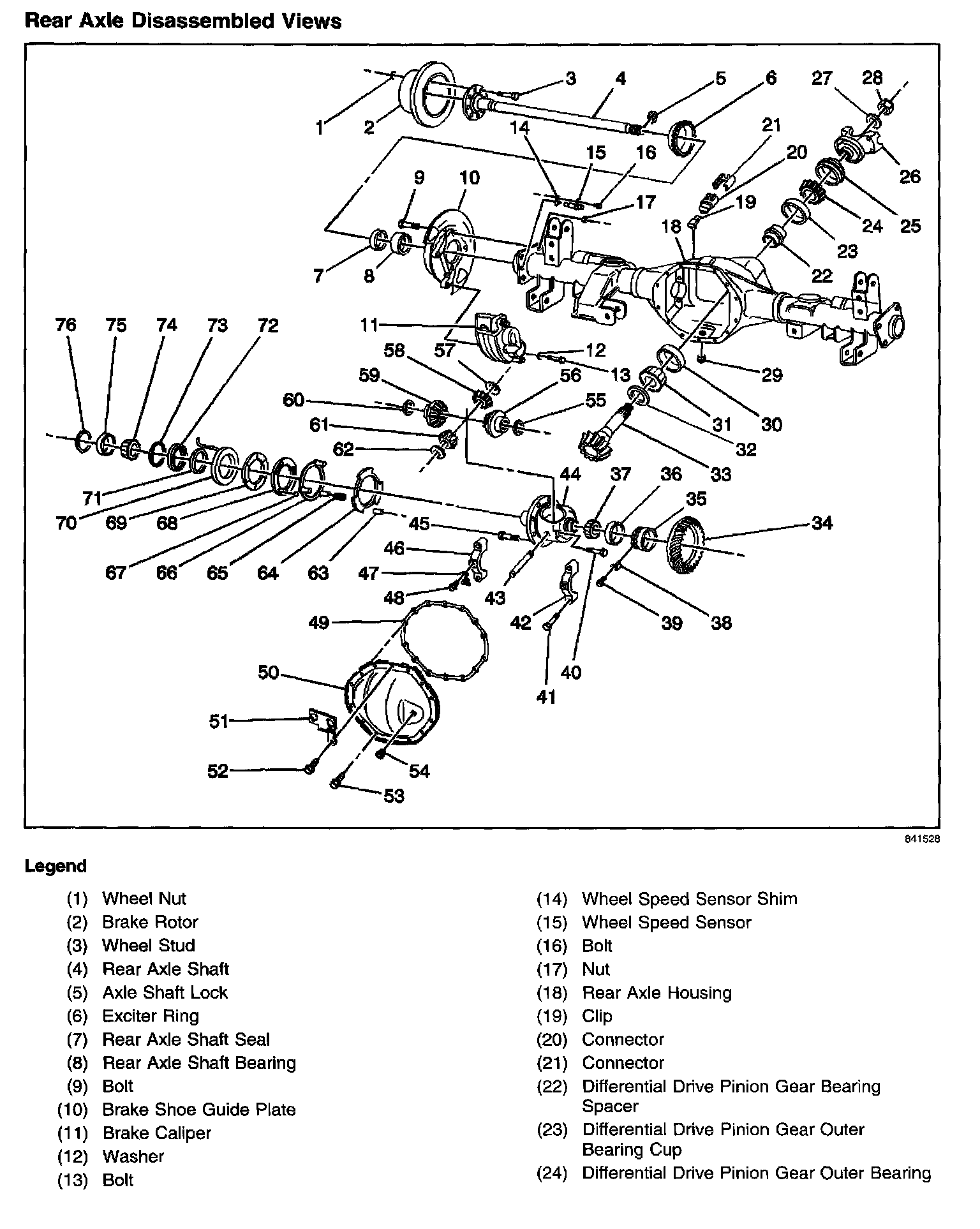

Rear Axle Disassembled Views Part 1:

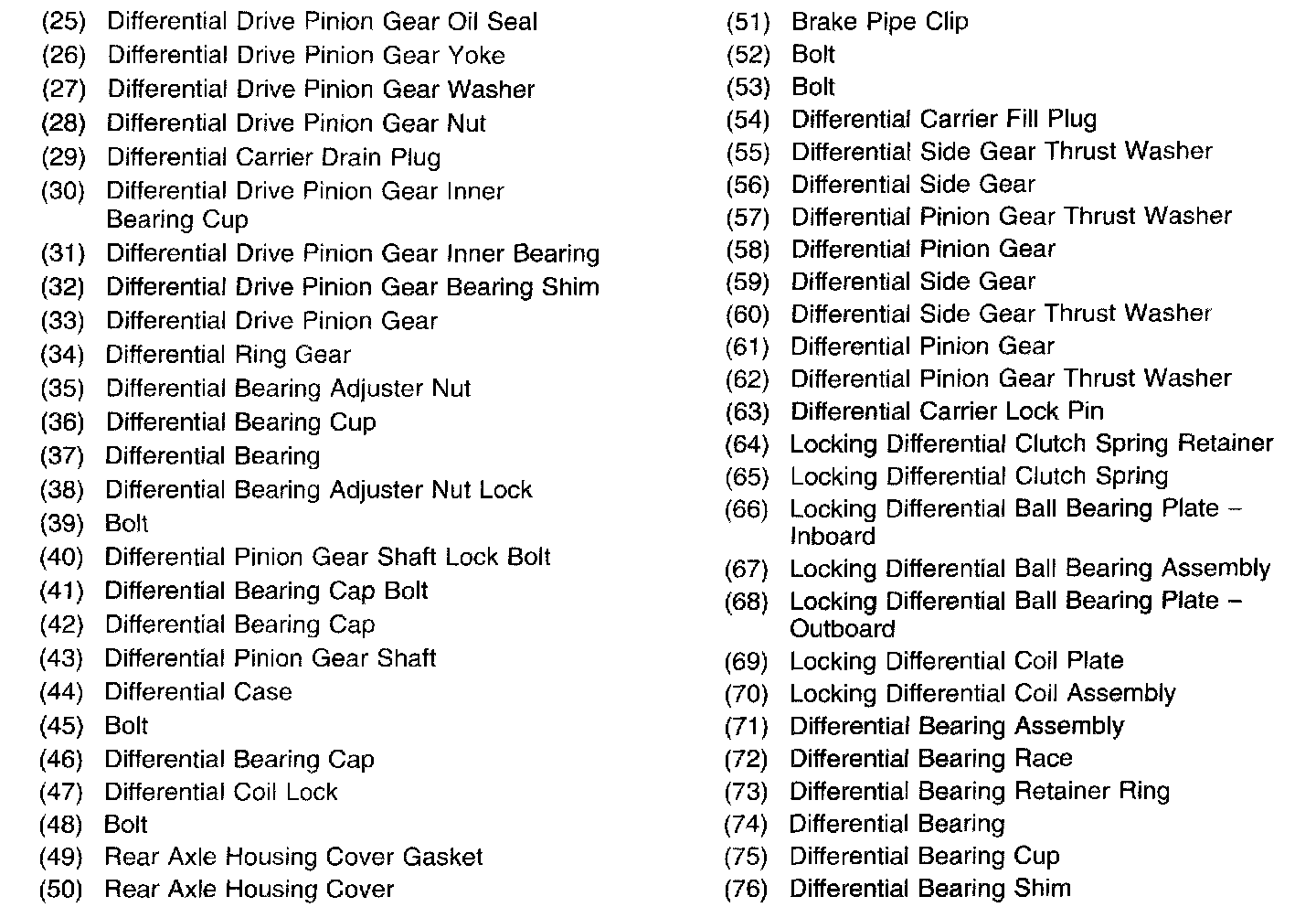

Rear Axle Disassembled Views Part 2:
