Power Trunk / Liftgate Control Module
Power Trunk / Liftgate Control Module

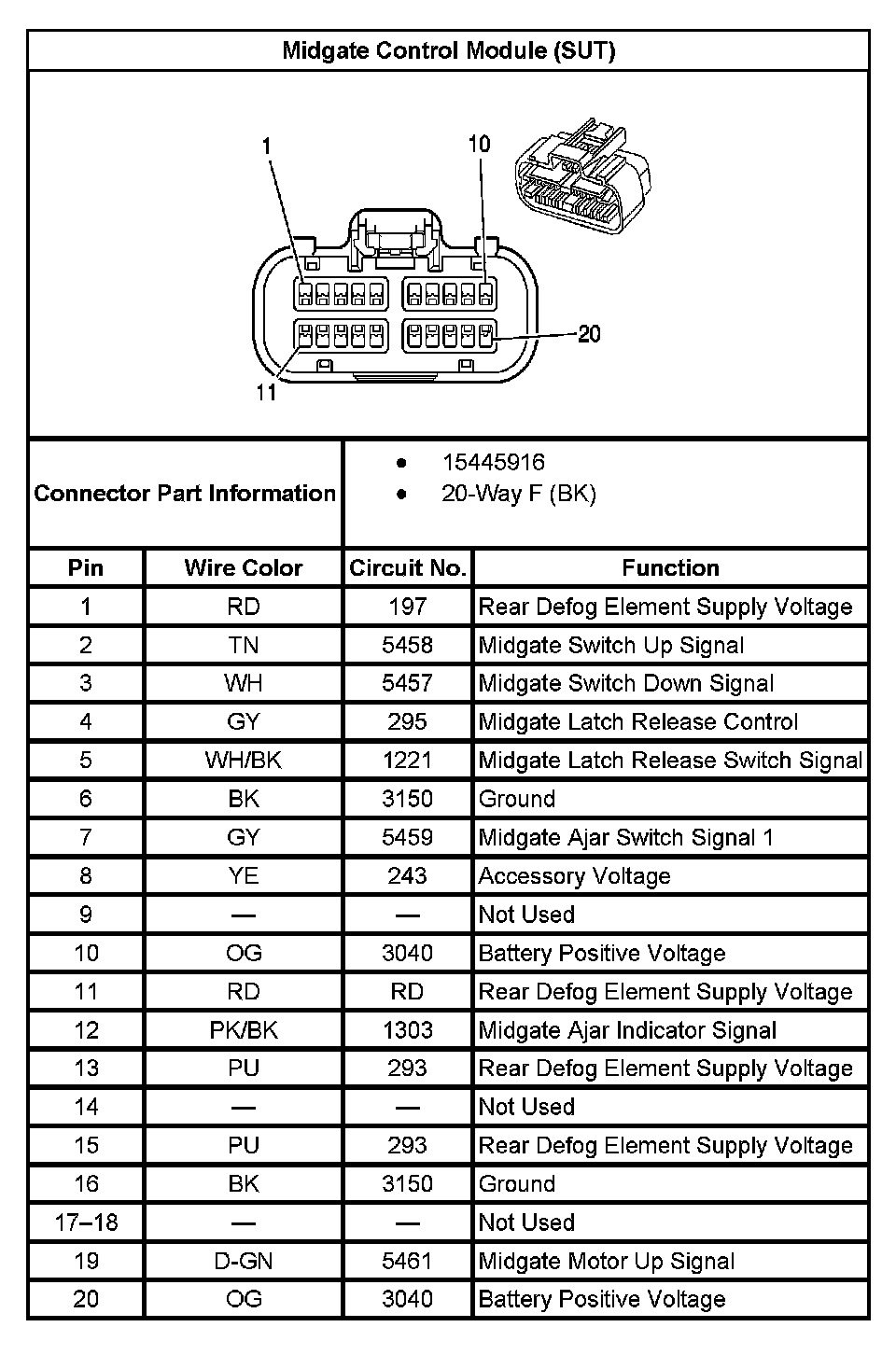

Midgate Control Module (SUT):
