Auxiliary Power Outlet
>>
Console
Console

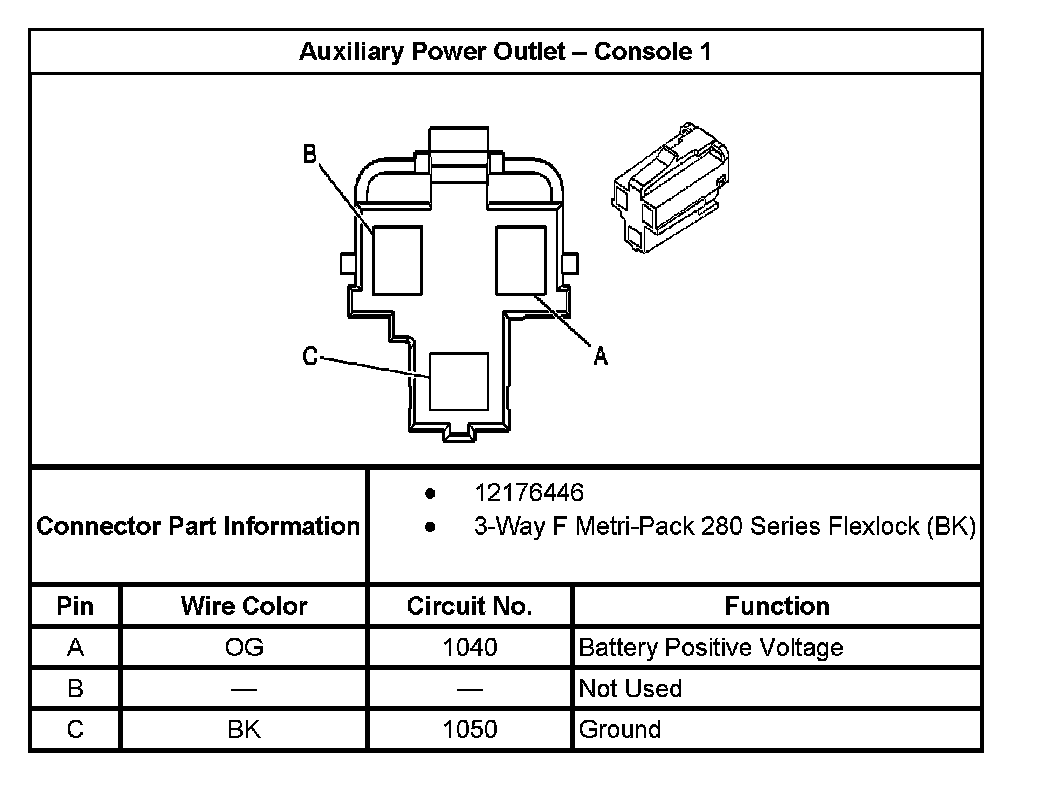

Auxiliary Power Outlet - Console 1:

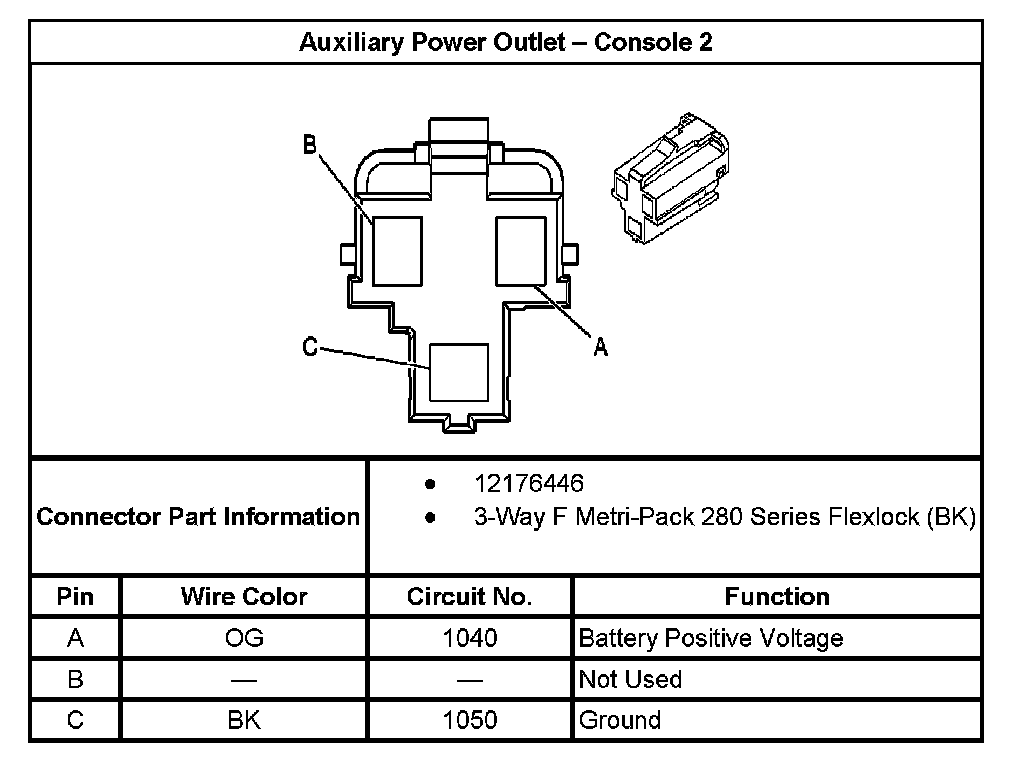

Auxiliary Power Outlet - Console 2:
