Hummer
>>
2005
>>
H2 V8-6.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Speaker
>>
RF Tweeter
RF Tweeter

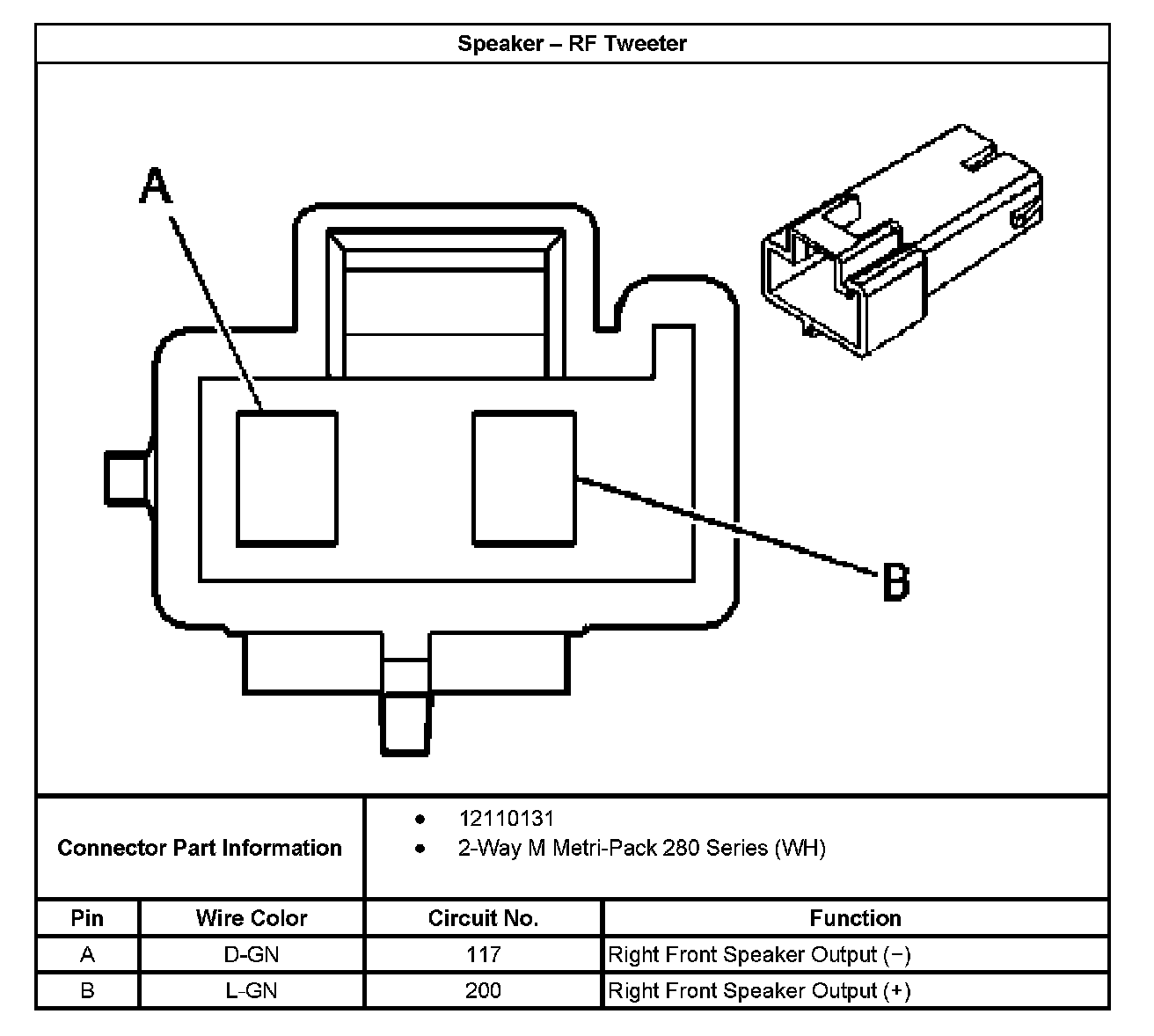

Speaker - RF Tweeter:
