Home
>>
Hummer
>>
2003
>>
H2 V8-6.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Diagrams
>>
Connector Views
>>
Junction Block - I/P C8
Junction Block - I/P C8

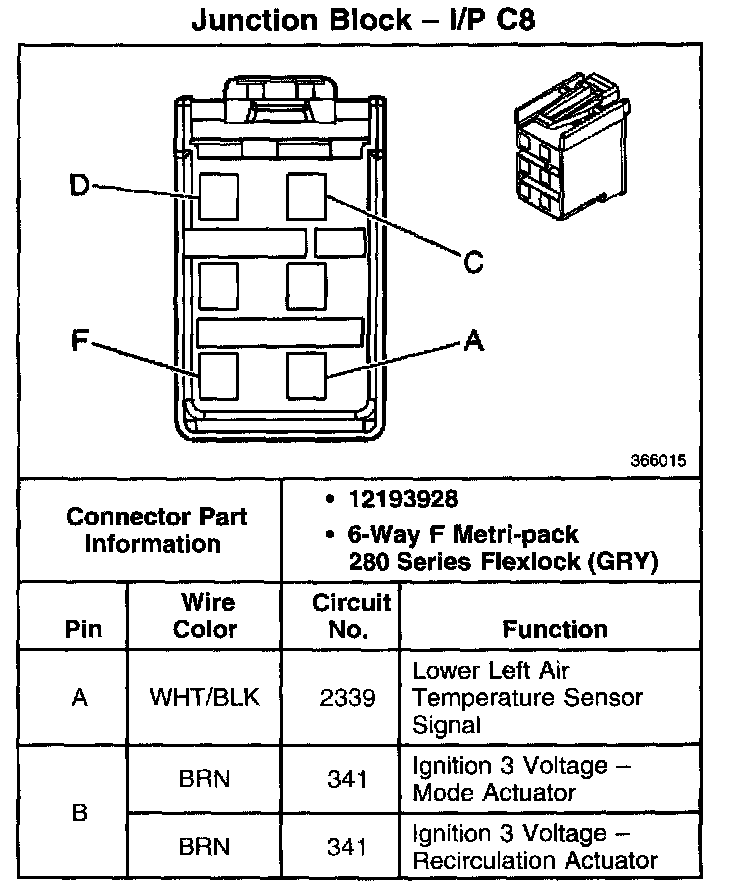

Junction Block - I/P C8 Part 1:

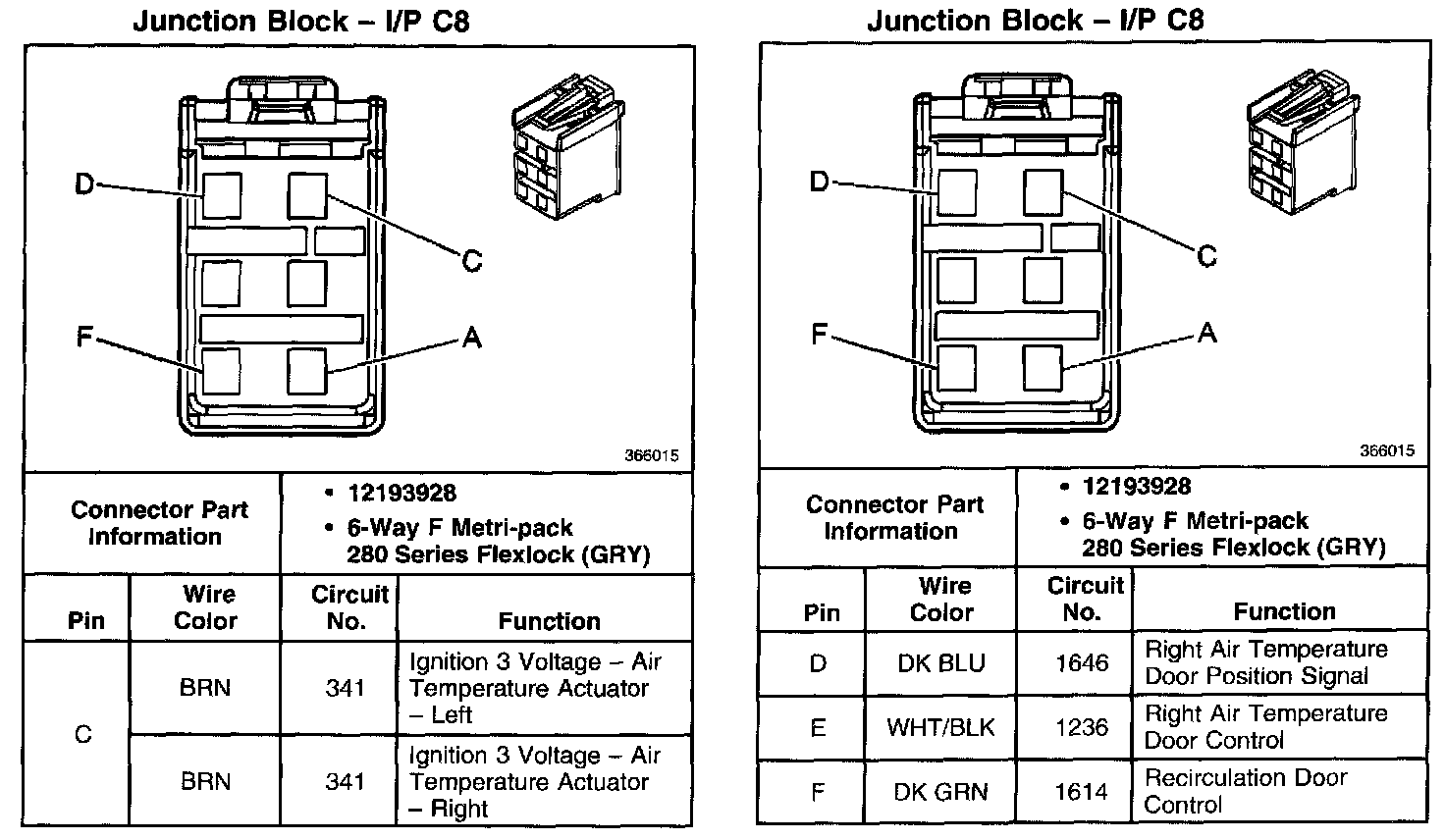

Junction Block - I/P C8 Part 2:
