Home >> Hummer >> 2003 >> H2 V8-6.0L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> S213

S213

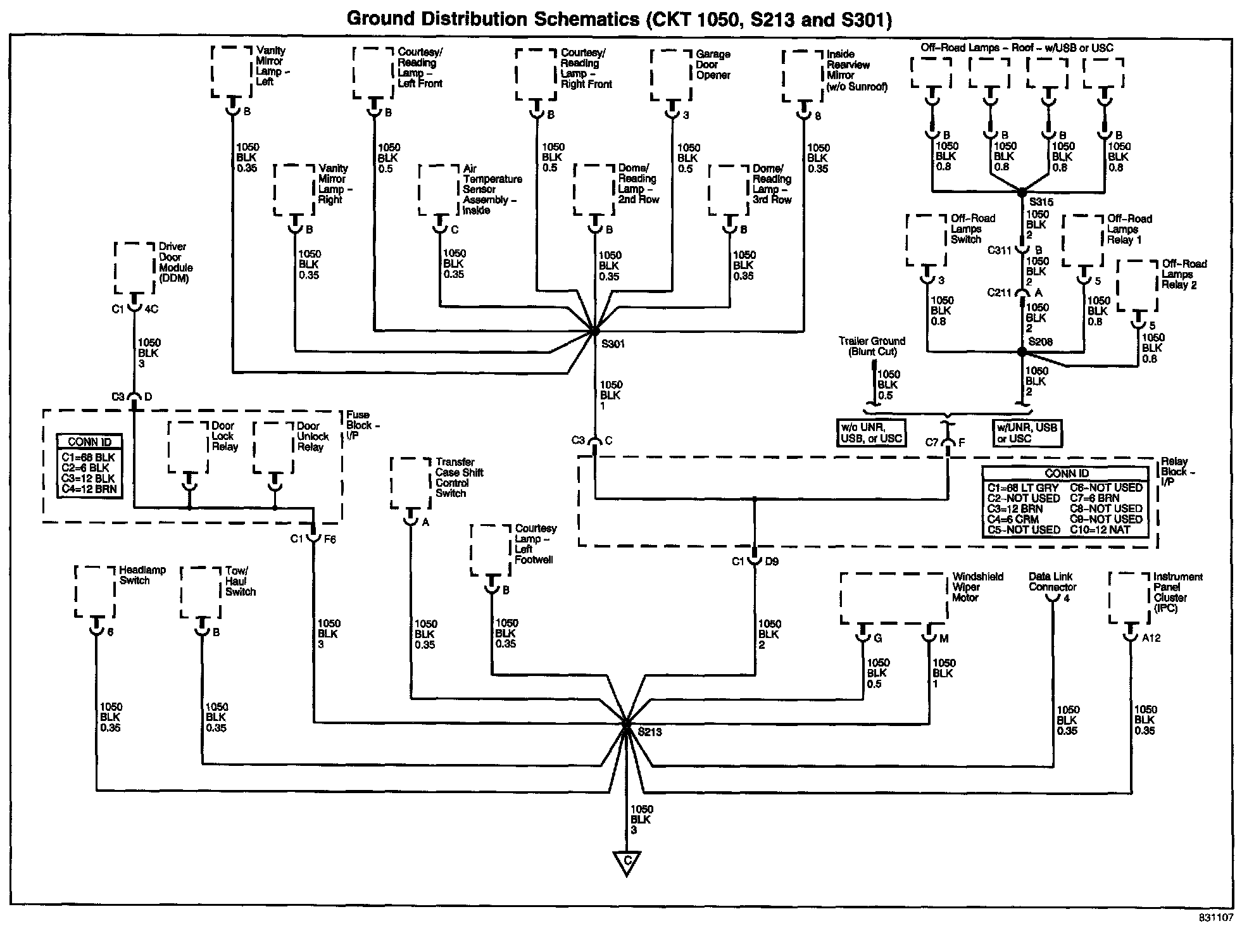

Ground Distribution Diagram 5:
