Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Honda
>>
2012
>>
Insight L4-1.3L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Relay Box
>>

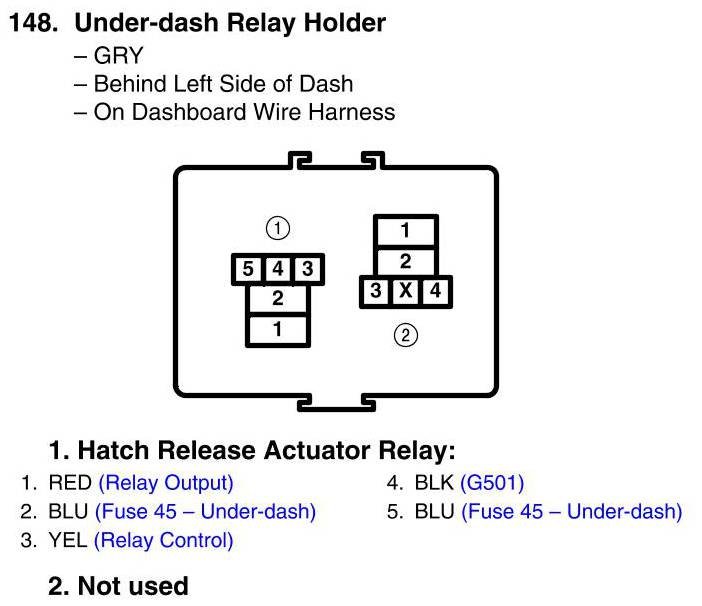

Under-Dash Relay Holder Connector View
Under-Dash Relay Holder Connector View
