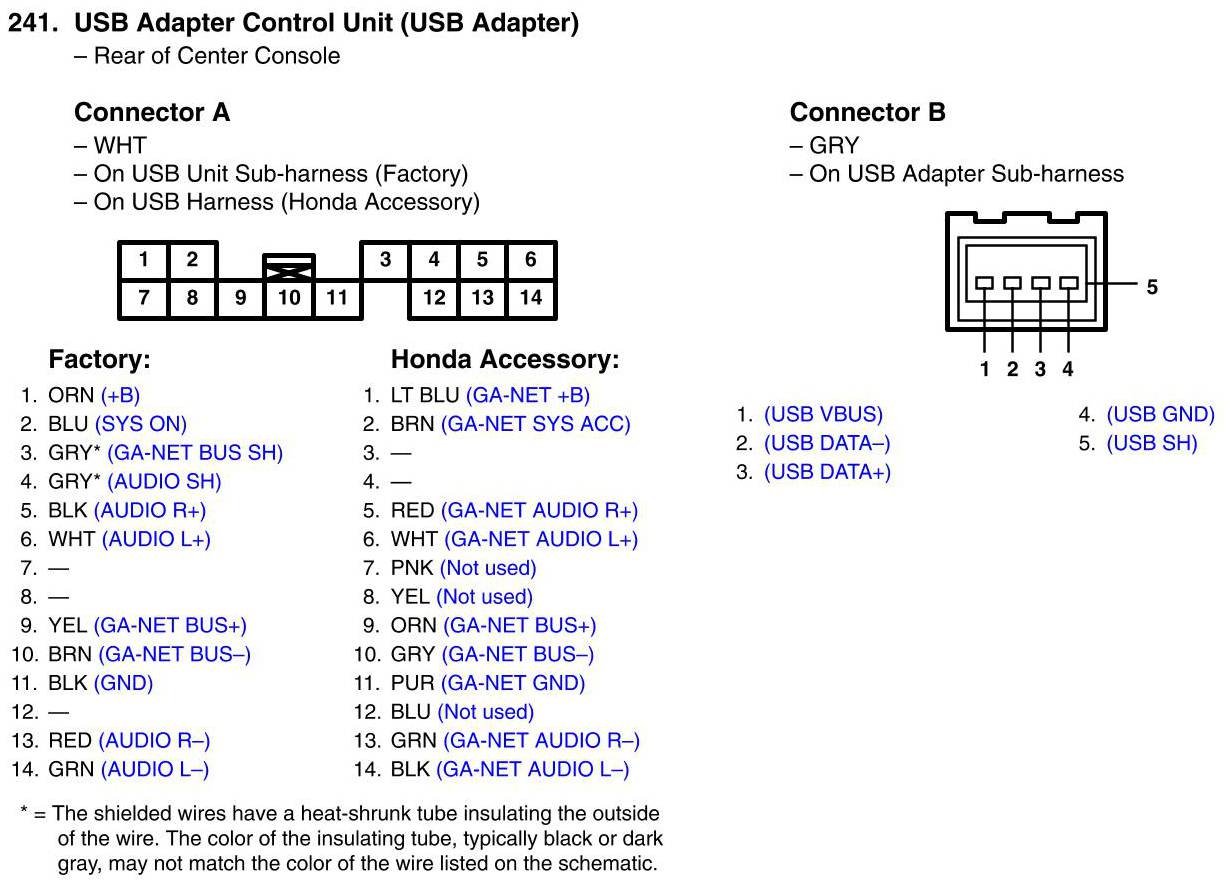

View 241 - USB Adapter Control Unit Connector View (USB Adapter)
View 241 - USB Adapter Control Unit Connector View (USB Adapter)
