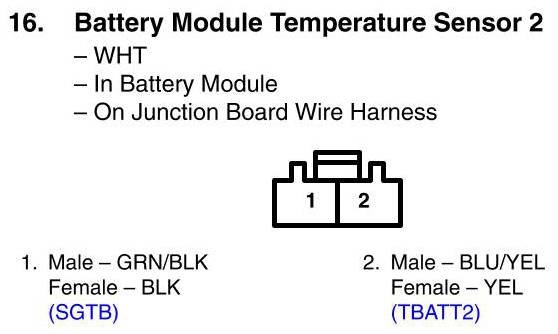

View 16 - Battery Module Temperature Sensor 2 Connector View
View 16 - Battery Module Temperature Sensor 2 Connector View
