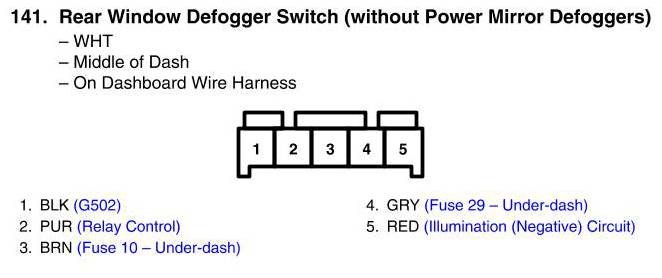

View 141 - Rear Window Defogger Switch Connector View (Without Power Mirror Defoggers)
View 141 - Rear Window Defogger Switch Connector View (Without Power Mirror Defoggers)
