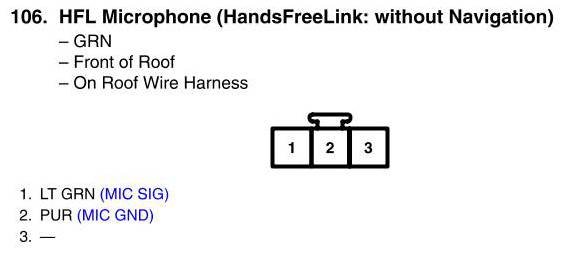

View 106 - HFL Microphone Connector View (HandsFreeLink : Without Navigation)
View 106 - HFL Microphone Connector View (HandsFreeLink : Without Navigation)
