Navigation System
>>
Navigation System Circuit Diagram (With Navigation)
Navigation System Circuit Diagram (With Navigation)
Navigation System

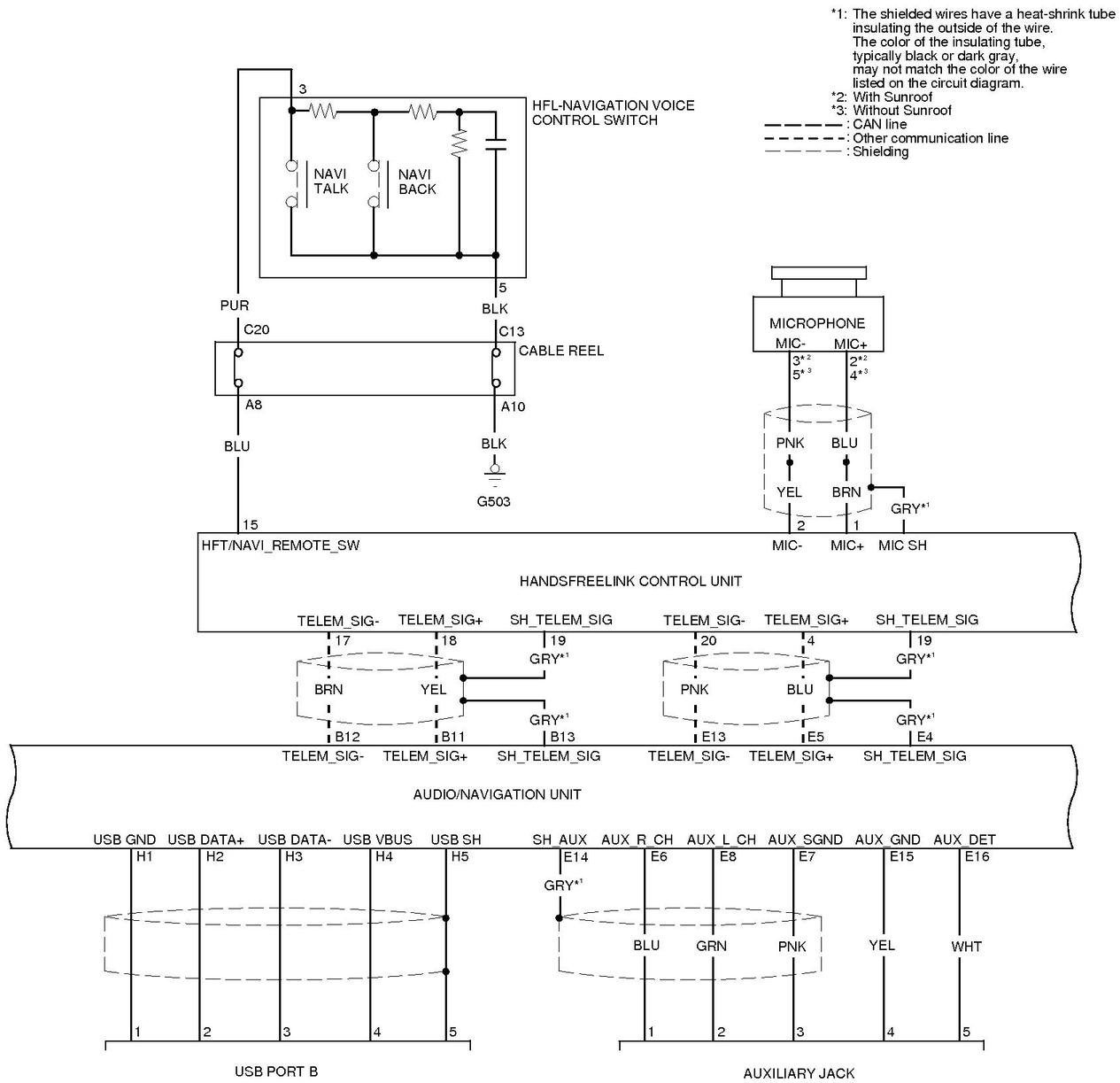

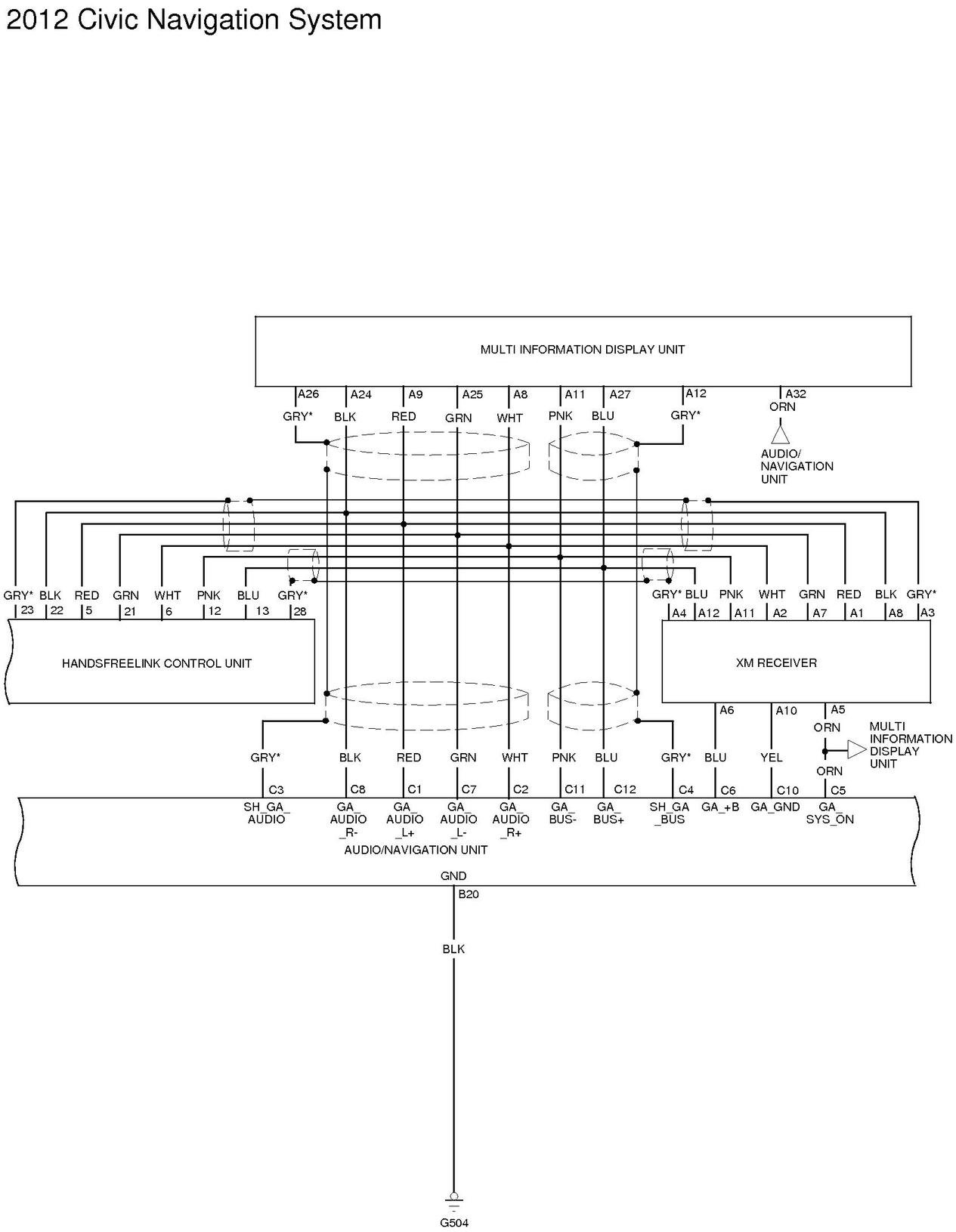

Circuit Diagram (With Navigation)
