A/T Gear Position Indicator Circuit Diagram

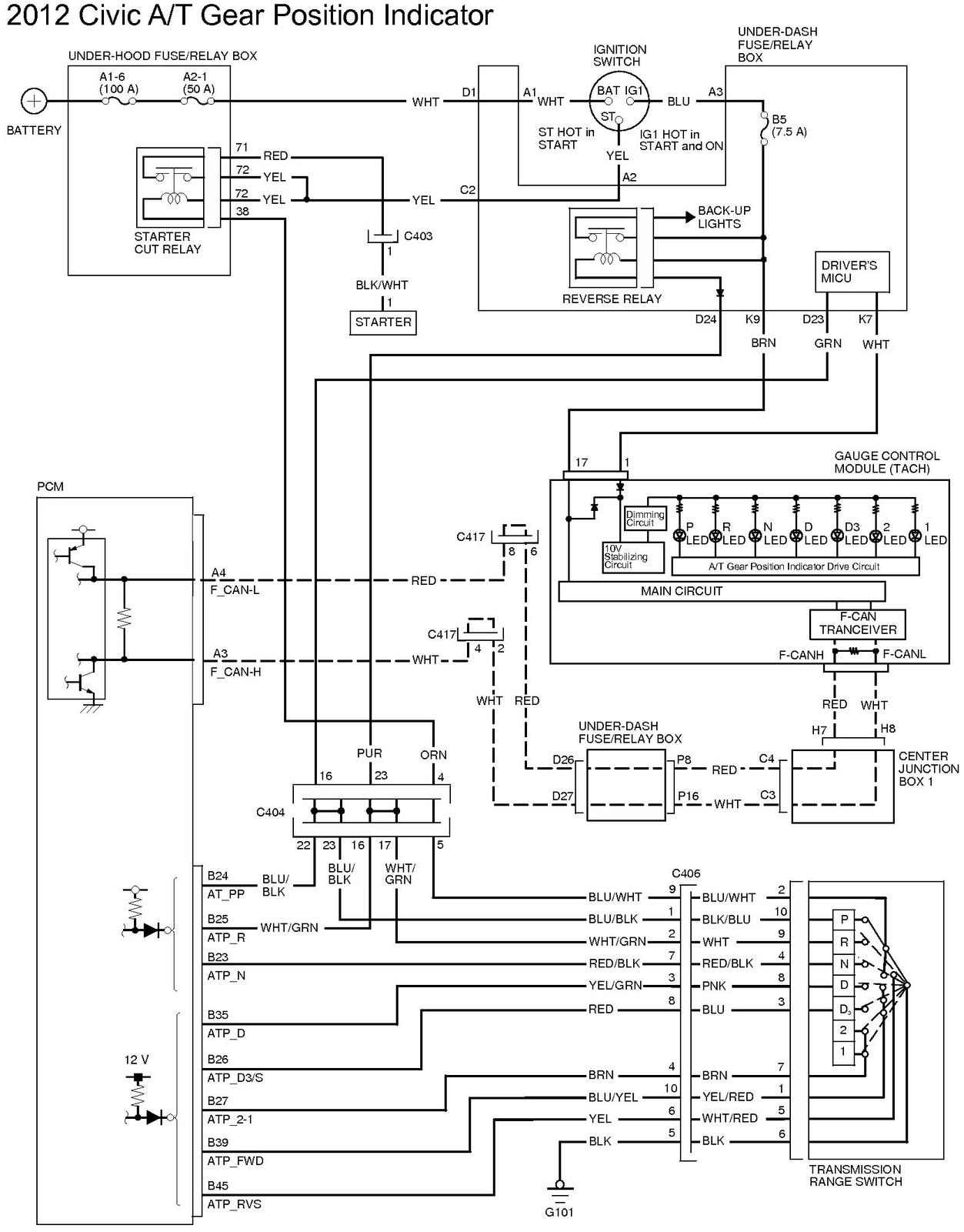

A/T Gear Position Indicator Circuit Diagram
A/T Gear Position Indicator Circuit Diagram (A/T with ELD)
