Home
>>
Honda
>>
2012
>>
Civic L4-1.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
>>

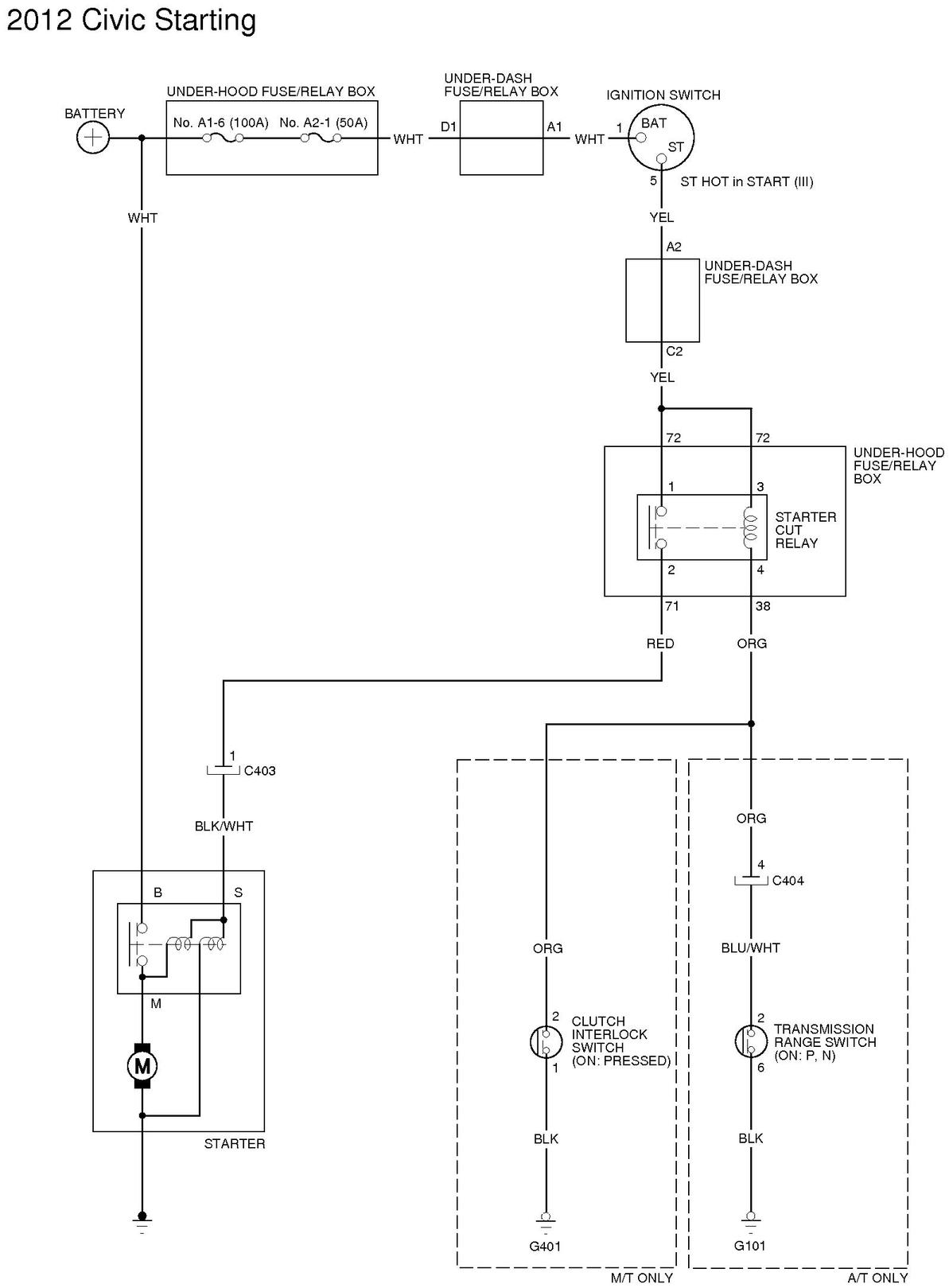

Starting System Circuit Diagram
Starting System Circuit Diagram
Starting System
Circuit Diagram
