Charging System Circuit Diagram

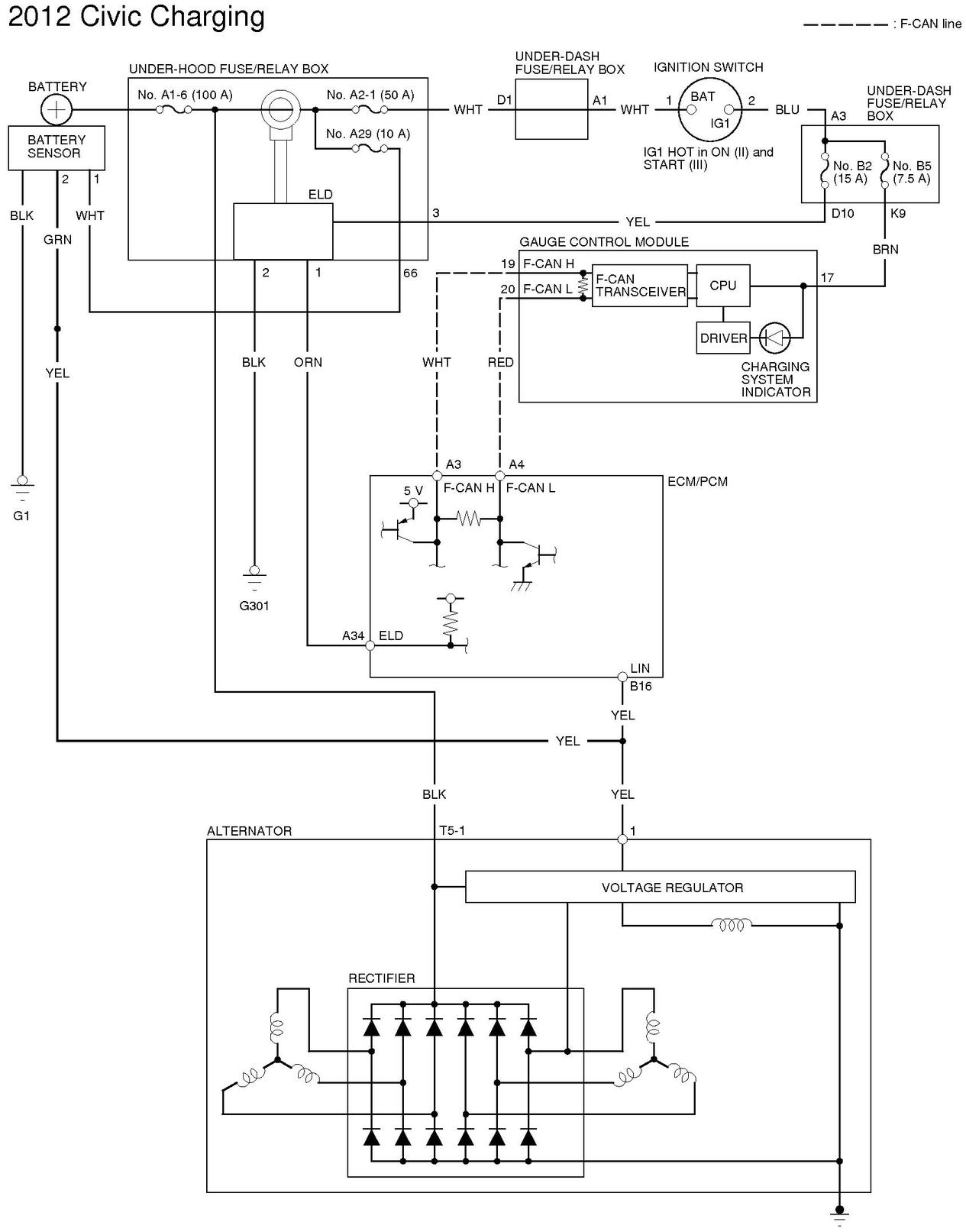

Charging System Circuit Diagram
Charging System
Circuit Diagram (With ELD)
