Immobilizer System Circuit Diagram

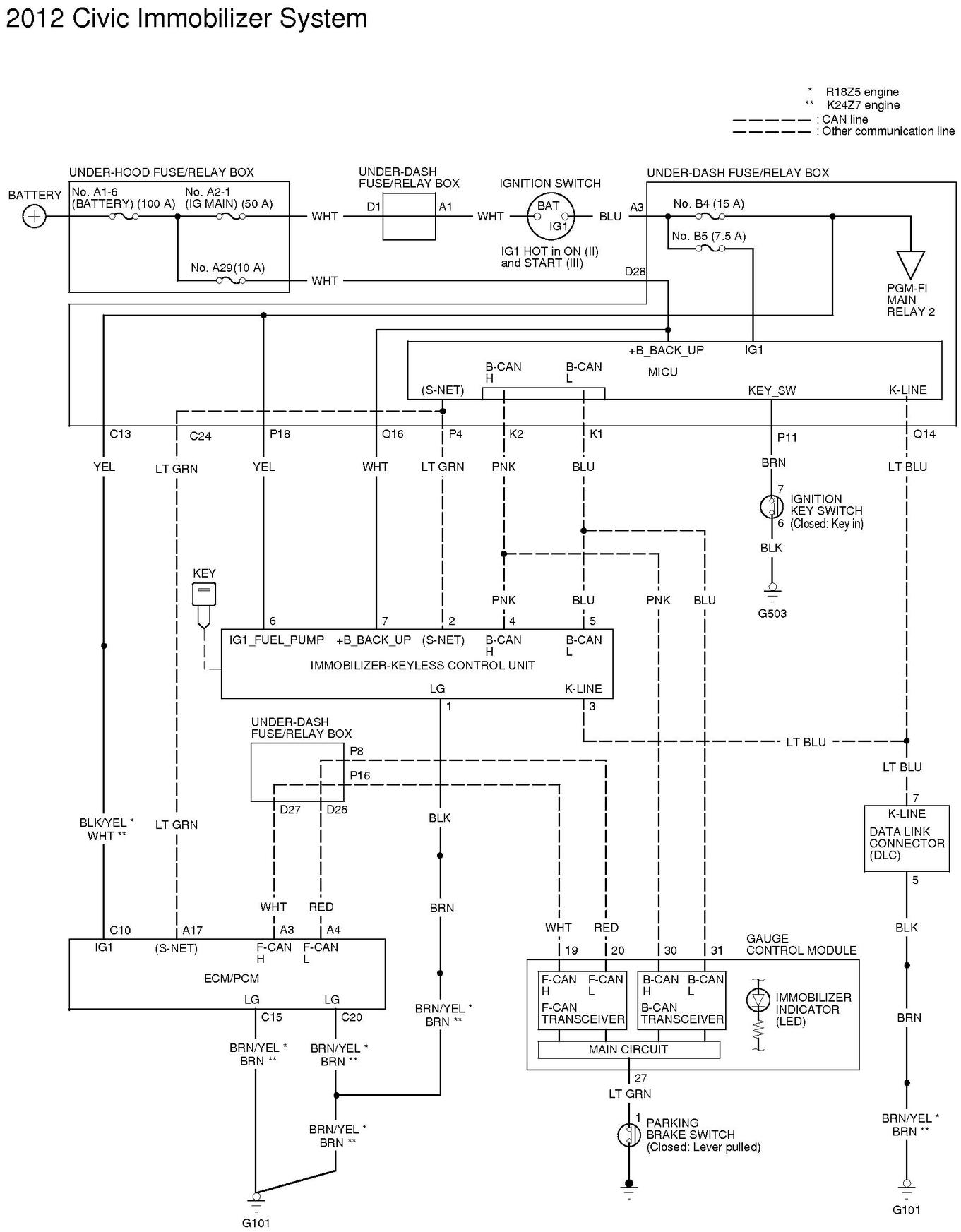

Immobilizer System Circuit Diagram
Immobilizer System Circuit Diagram
