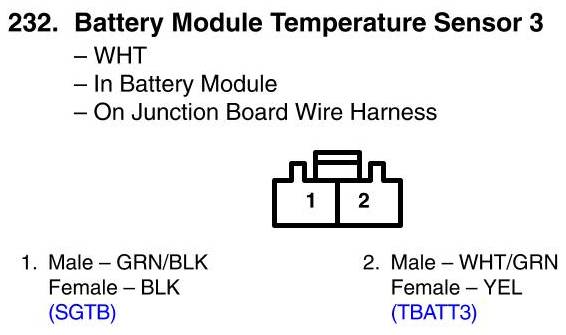

View 232 - Battery Module Temperature Sensor 3 Connector View
View 232 - Battery Module Temperature Sensor 3 Connector View
