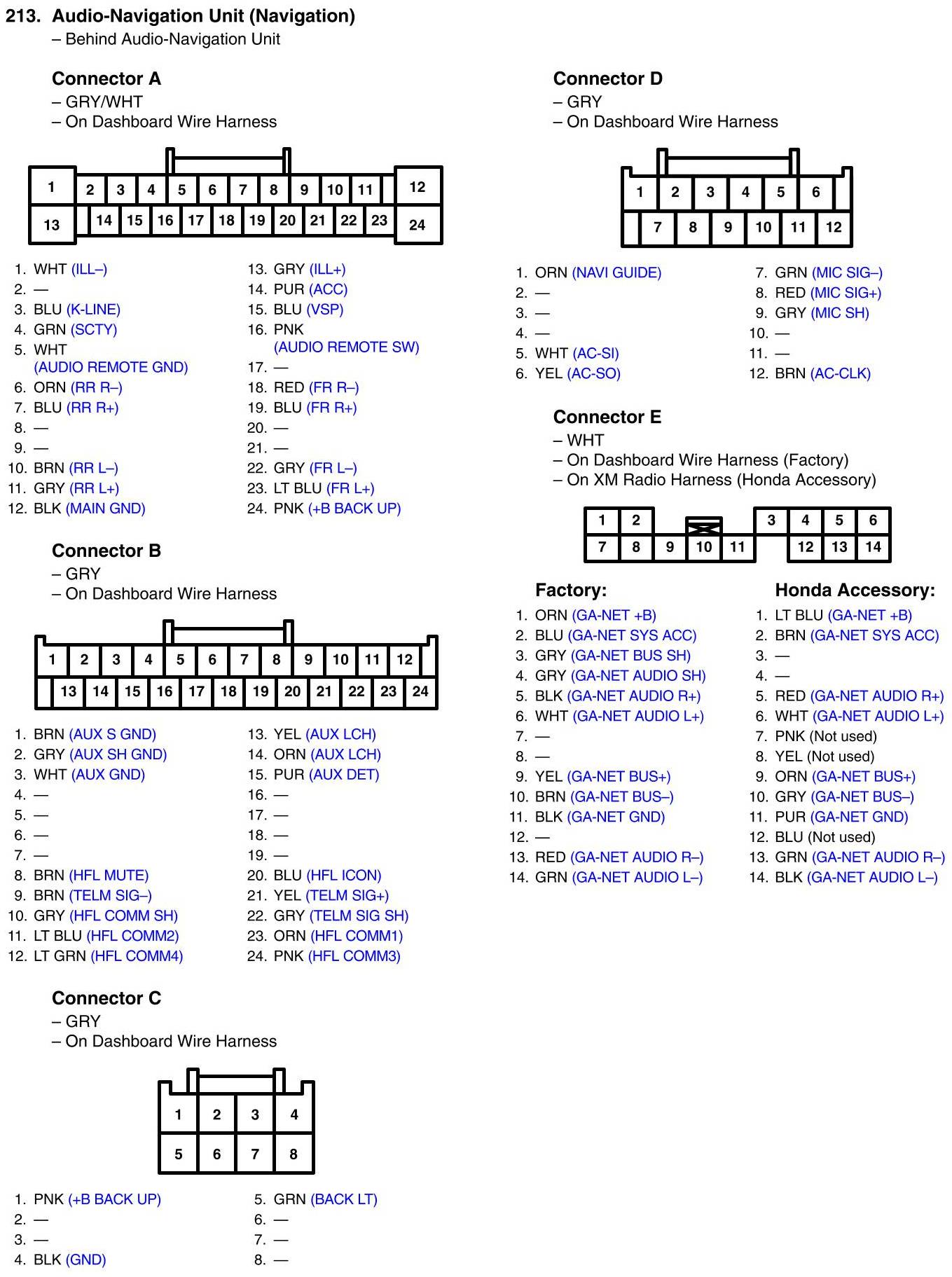

View 213 - Audio-Navigation Unit Connector View (Navigation)
View 213 - Audio-Navigation Unit Connector View (Navigation)
