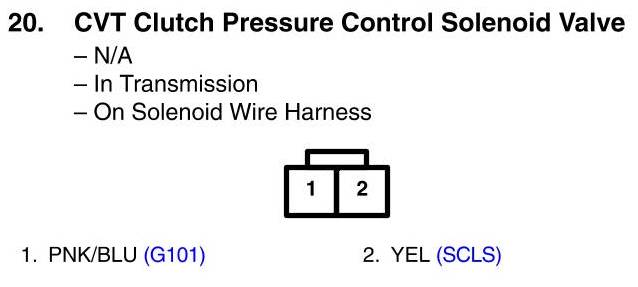

View 20 - CVT Clutch Pressure Control Solenoid Valve Connector View
View 20 - CVT Clutch Pressure Control Solenoid Valve Connector View
