CVT Input Shaft Planetary Carrier Clearance Inspection

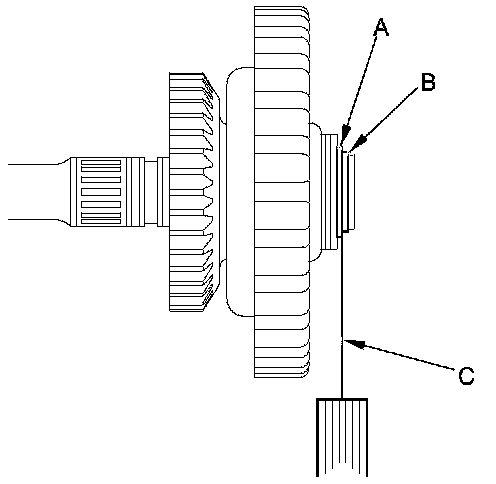

1. Measure the clearance between the 25 x 31 mm thrust shim (A) and the snap ring (B) using a feeler gauge (C), in at least three places. Use the average as the actual clearance.










2. If the clearance is out of the standard, remove the 25 x 31 mm thrust shim (A) and measure its thickness.






3. Select a new 25 x 31 mm thrust shim from the following table and install it, then recheck that the clearance is within the standard.

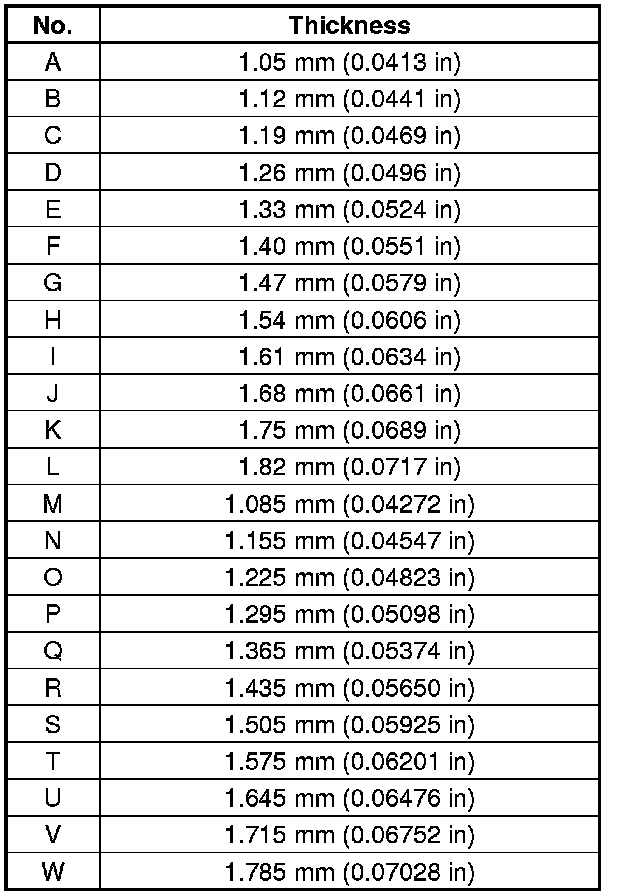

THRUST SHIM, 25 x 31 mm

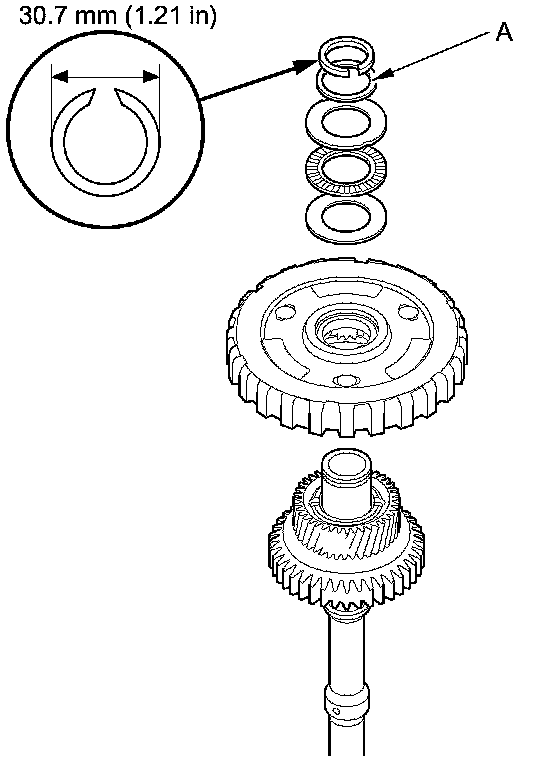

4. Check that the snap ring outside diameter is 30.7 mm (1.21 in) or less.
