Inhibitor Solenoid Replacement

Inhibitor Solenoid Replacement

1. Remove the lower valve body Lower Valve Body Removal/Installation.

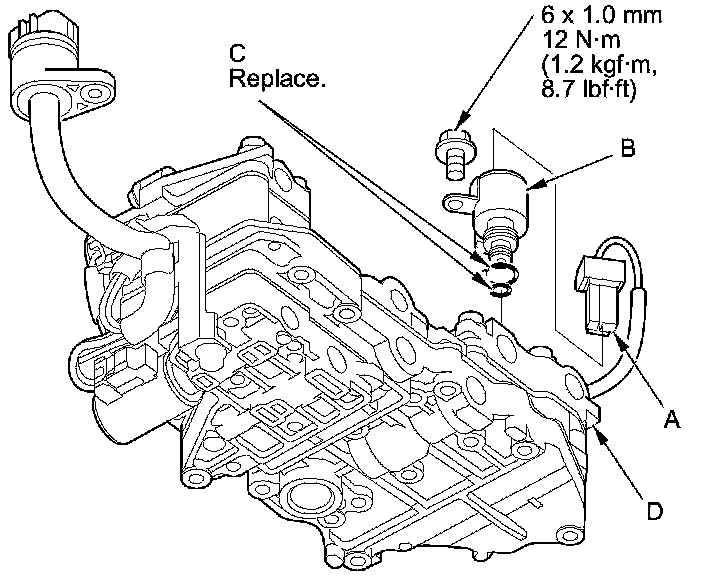

2. Disconnect the inhibitor solenoid connector (A).





3. Remove the inhibitor solenoid (B), then remove the O-rings (C) from the inhibitor solenoid.

4. Install new O-rings on a new inhibitor solenoid, then install the inhibitor solenoid on the CVT driven pulley pressure control valve (D).

5. Connect the inhibitor solenoid connector.

6. Install the lower valve body Lower Valve Body Removal/Installation.
