Inhibitor Solenoid Removal/Installation




Inhibitor Solenoid Removal/Installation

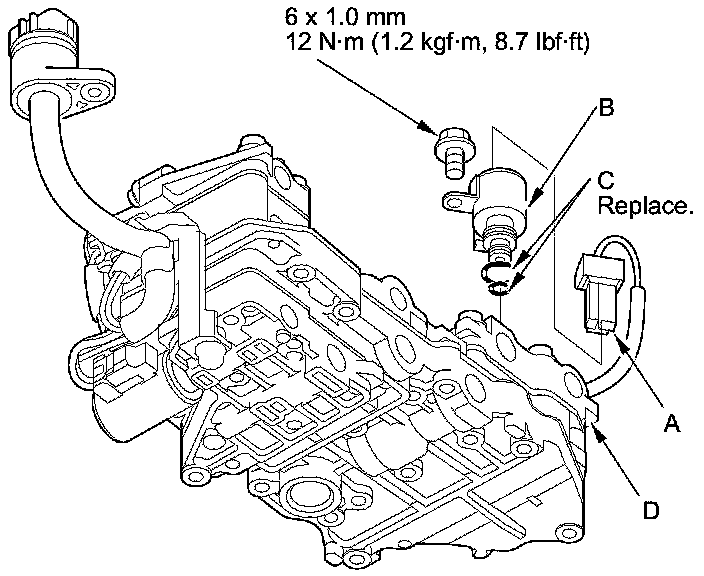

1. Disconnect the inhibitor solenoid connector (A).





2. Remove the inhibitor solenoid (B), then remove the two O-rings (C) from the inhibitor solenoid.

3. Install the two O-rings on the inhibitor solenoid, then install the inhibitor solenoid on the CVT driven pulley pressure control solenoid valve (D).

4. Connect the inhibitor solenoid connector.
