CVT Clutch Pressure Control Solenoid Valve Removal/Installation

CVT Clutch Pressure Control Solenoid Valve Removal/Installation

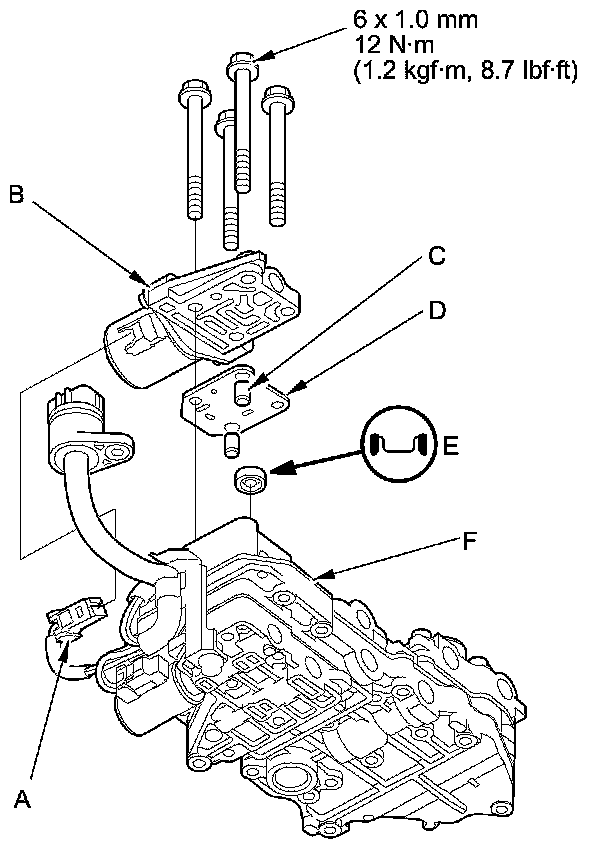

1. Disconnect the CVT clutch pressure control solenoid valve connector (A).





2. Remove the CVT clutch pressure control solenoid valve (B) (four bolts), the dowel pins (C), and the separator plate (D).

3. Check that the filter (E) is in good condition, replace it if it is clogged or damaged.

4. Install the CVT clutch pressure control solenoid valve (four bolts) with the two dowel pins and the separator plate on the lower valve body (F).

5. Connect the CVT clutch pressure control solenoid valve connector.
