Rear Seat Belt Replacement

Rear Seat Belt Replacement

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*Available through the Honda Tool and Equipment Program, 888-424-6857

Rear Seat Belt

NOTE:

- Put on gloves to protect your hands.
- Take care not to tear or damage the seat covers.
- Check the rear seat belts for damage Testing and Inspection, and replace them if necessary.

1. Remove these items:

- Rear seat cushion Rear Seat Removal/Installation
- Cargo area side trim panel Interior Trim Removal/Installation - Cargo Areas
- C-pillar trim

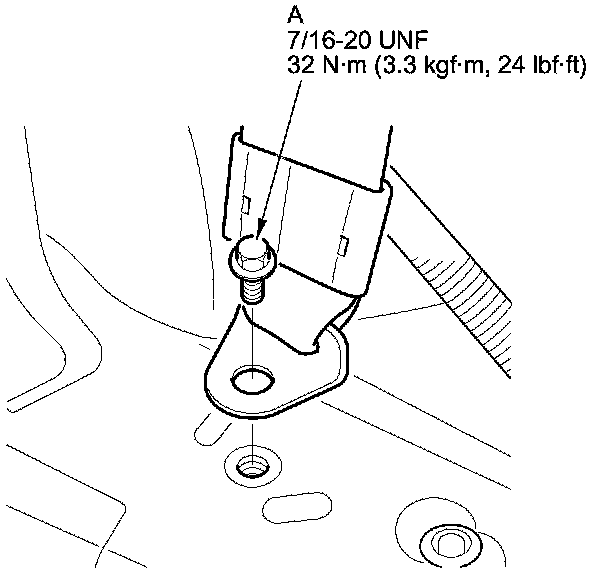

2. Remove the lower anchor bolt (A).

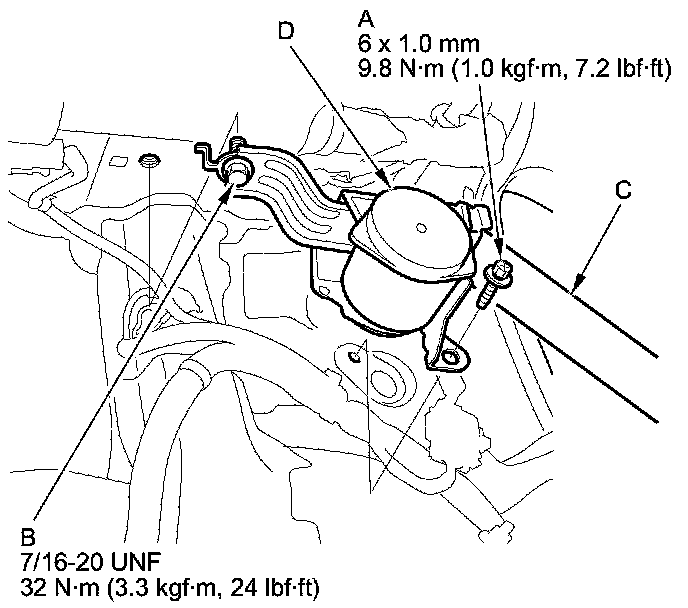

3. Remove the retractor mounting bolt (A) and the retractor bolt (B), then remove the rear seat belt (C) and the retractor (D). The left seat belt is shown; the right seat belt is similar.






4. Install the seat belt and the retractor in the reverse order of removal, and note these items:

- Tighten the bolts by hand first, then tighten to specified torque.
- Check that the retractor locking mechanism functions as described Testing and Inspection.
- Assemble the washer on the lower anchor bolt as shown.
- Before installing the anchor bolts, make sure there are no twists or kinks in the seat belt.
- Make sure the seat belt tensioner connector is properly plugged in.

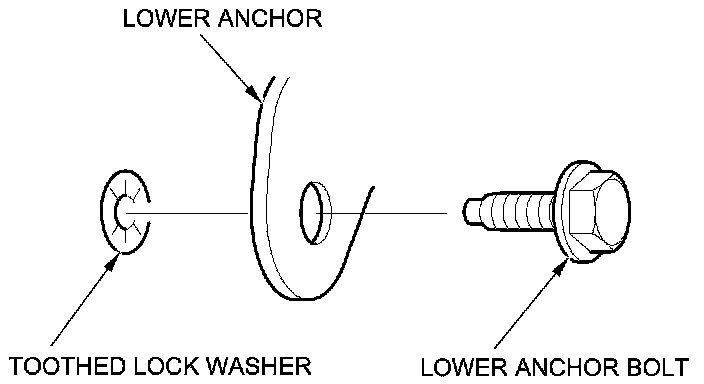

Lower anchor bolt installation






Rear Center Seat Belt

NOTE:

- Put on gloves to protect your hands.
- Take care not to tear or damage the seat covers.
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

1. Remove the right side seat-back.

2. Remove the right side seat-back cover/pad Rear Seat-Back Cover Replacement.

3. Remove the screws, then remove the bracket (A).

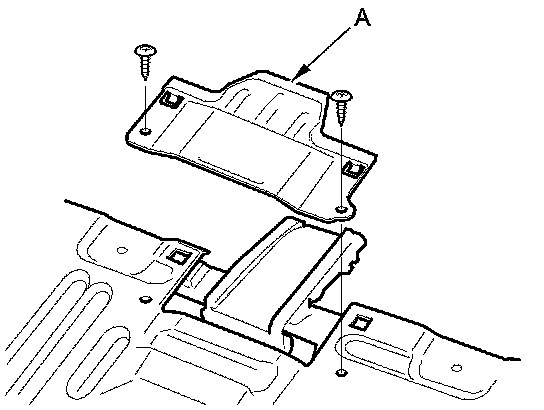

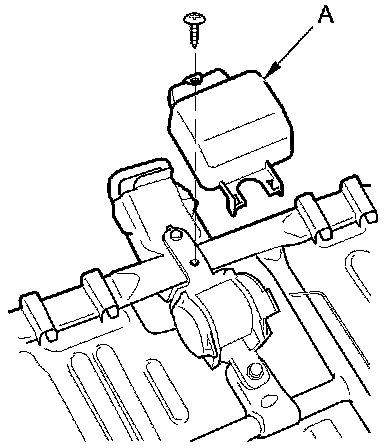

4. Remove the screw, then remove the cover (A).

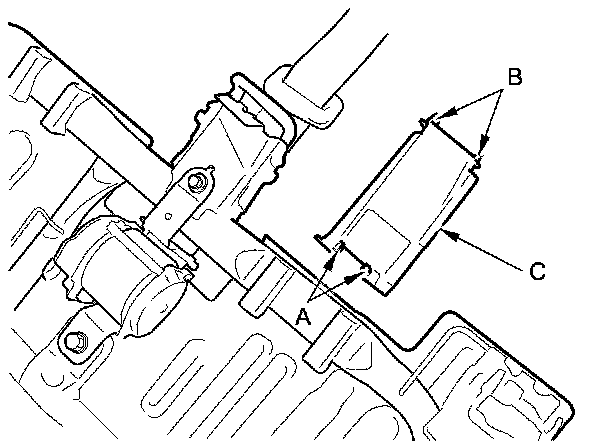

5. Detach the hooks (A, B), then remove the rear back belt guide trim (C).

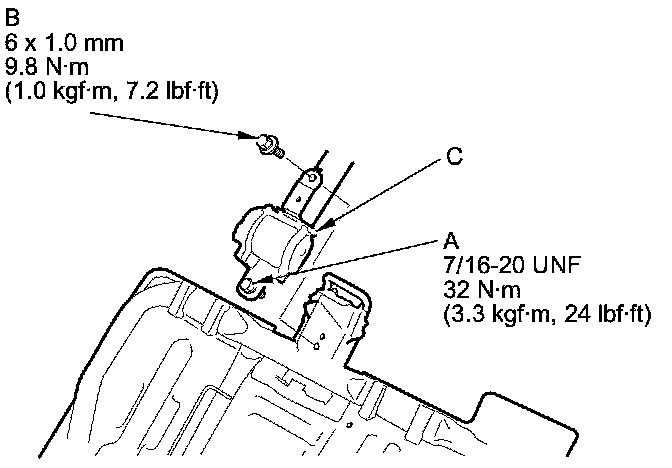

6. Remove the retractor mounting bolt (A) and the retractor bolt (B), then remove the rear center seat belt (C).






7. Install the center seat belt and retractor in the reverse order of removal, and note these items:

- Tighten the bolts by hand first, then tighten to the specified torque.
- Check that the retractor locking mechanism functions as described Testing and Inspection.
- Before installing the anchor bolt, make sure there are no twists or kinks in the center seat belt.

Rear Seat Belt Buckles

NOTE:

- Put on gloves to protect your hands.
- Take care not to tear or damage the seat covers.

1. Remove the seat cushion.

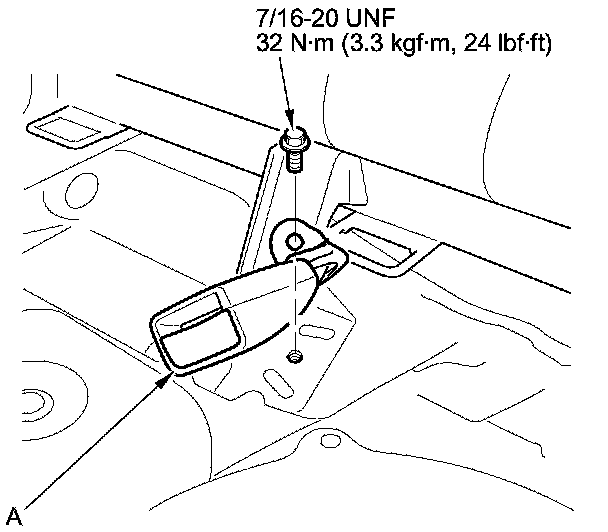

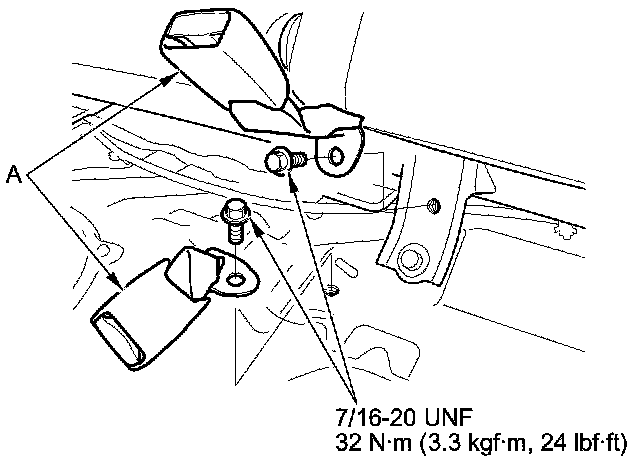

2. Remove the bolts, then remove the rear seat belt buckles (A).

Left side





Right side





3. Install the anchor and the buckle in the reverse order of removal, and note these items:

- Tighten the bolts by hand first, then tighten to the specified torque.
- Assemble the washer on the anchor bolt as shown.

Anchor bolt installation
