Variable Valve Timing Actuator Position Sensor
>>
Diagrams
>>

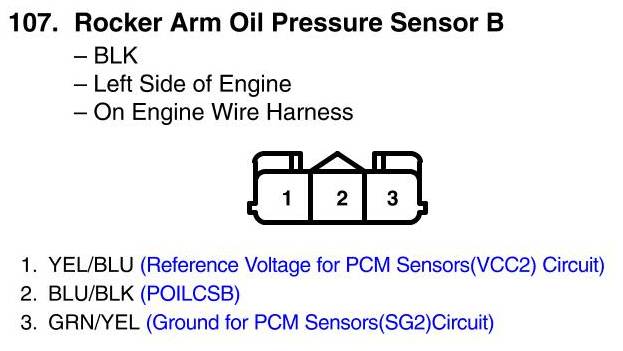

Rocker Arm Oil Pressure Sensor B Connector View
Rocker Arm Oil Pressure Sensor B Connector View
