Dashboard Vent Removal/Installation

Dashboard Vent Removal/Installation

SRS components are located in this area. Review the SRS component locations Locations and the precautions and procedures Service and Repair before doing repairs or service.

NOTE: Take care not to scratch the dashboard or the related parts.

1. Remove the glove box Service and Repair.

2. Remove the screws, then pull back the dashboard duct (A).

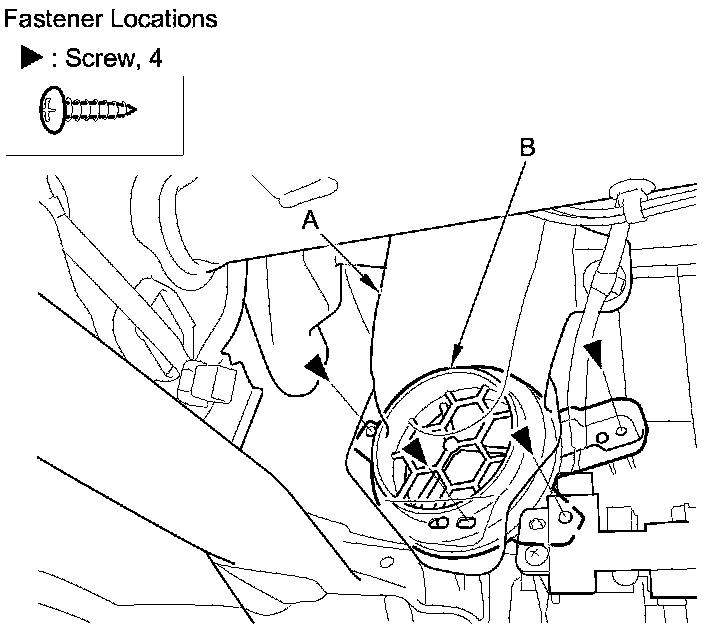

Inside dashboard vent

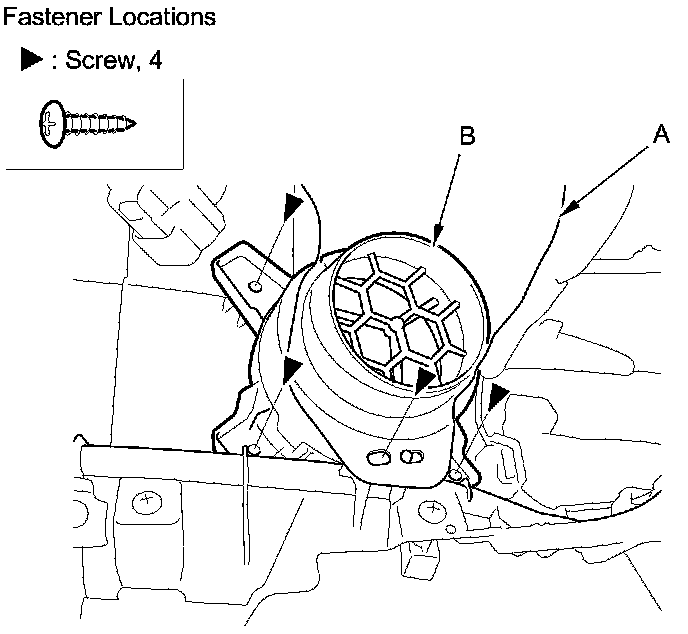

Outside dashboard vent





3. Remove the dashboard vent (B).

4. Install the dashboard vent in the reverse order of removal.
