Home
>>
Honda
>>
2010
>>
Insight L4-1.3L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By View Number
>>

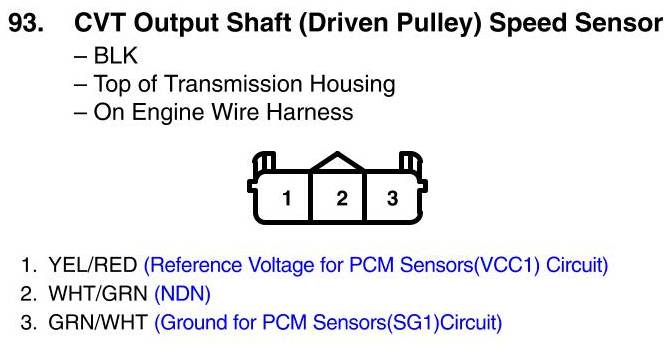

View 93 - CVT Output Shaft (Driven Pulley) Speed Sensor Connector View
View 93 - CVT Output Shaft (Driven Pulley) Speed Sensor Connector View
