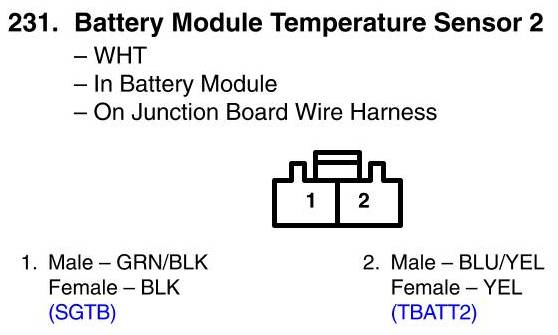

View 231 - Battery Module Temperature Sensor 2 Connector View
View 231 - Battery Module Temperature Sensor 2 Connector View
