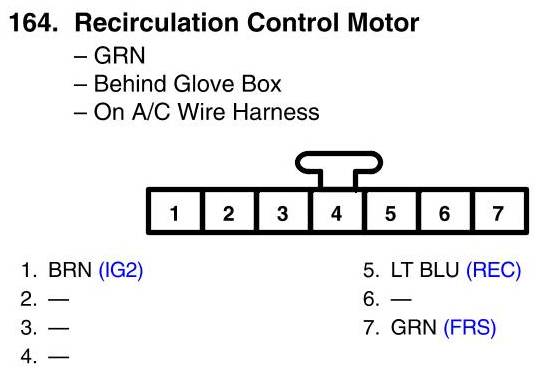

View 164 - Recirculation Control Motor Connector View
View 164 - Recirculation Control Motor Connector View
