Brake Pedal Assy: Service and Repair

Brake Pedal Replacement

1. Remove the driver's dashboard undercover Driver's Dashboard Undercover Removal/Installation.

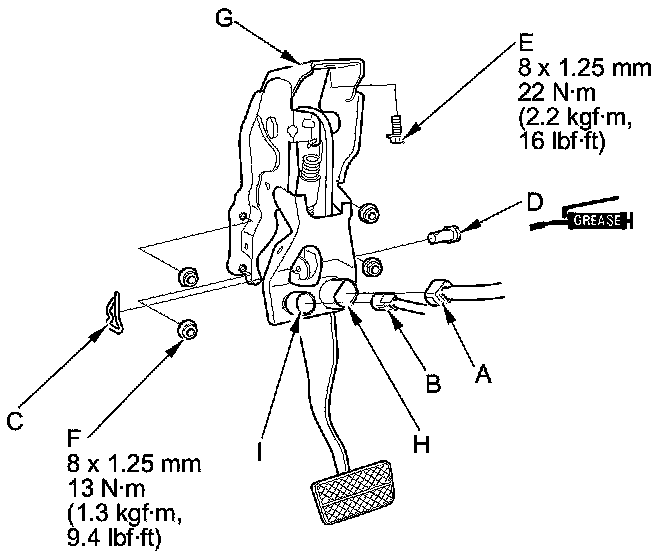

2. Disconnect the brake pedal position switch connector (A).





3. Disconnect the idle stop switch connector (B).

4. Remove the lock pin (C) and clevis pin (D).

5. Remove the brake pedal bracket mounting bolt (E) and the nuts (F).

6. Remove the brake pedal with bracket (G).

7. Remove the brake pedal position switch (H) by turning it counter clockwise and the idle stop switch (I) from brake pedal.

8. Install in the reverse order of removal.

9. Adjust the brake pedal and brake pedal position switch/idle stop switch adjustment Brake Pedal And Brake Pedal Position Switch/Idle Stop Switch Adjustment.
